90 Degree White Ants Resistant Soft Pvc Compound Sheath Grade Insulation

90 Degree White Ants Resistant Soft Pvc Compound Sheath Grade Insulation

90 Degree White Ants Resistant Soft Pvc Compound Sheath Grade Insulation
90 Degree White Ants Resistant Soft Pvc Compound Sheath Grade Insulation
90 Degree White Ants Resistant Soft Pvc Compound Sheath Grade Insulation
Product Details:
Place of Origin: Jiangxi,China
Brand Name: Longtai
Certification: SGS,Reach,RoHS,UL
Model Number: Lead free 70degree
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Kilograms
Price: US 0.9-1.2/Kilogram
Packaging Details: 600-800kgs per jumbo bag or 25kg per bag
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Ton/Tons per Month
Contact Now
Detailed Product Description
Color: Black And Colorful Usage: Cable Jacket And Insulation
Material: Virgin Pvc Resin Degree: 70-102 Degree
Hardness: 60A~90A Certificate: SGS,Reach, RoHS,UL
Type: Normal Type Density: 1.35g/cm3~1.55g/cm3
High Light:

90 Degree Soft Pvc Compound

,

White Ants Resistant Soft Pvc Compound

,

Sheath Grade PVC Compound

 90 Degree White Ants Resistant Sheath Grade Soft Polyvinyl Chloride Fire Resistant Insulation PVC Compounds
Insulation and Sheather Grade PVC Flexible PVC granules for Cable and Wire

PVC cable mass is usually compounded in two stages: hot/cold mixing in the powder phase, followed by compounding and pelletizing on a Co-Kneader.


Compounding requirements can be summarized as follows. The plasticizers and other constituents like stabilizers, additives, fillers, reinforcements, flame retardants and others. are absorbed in the porous PVC grain and then must be systematically gelled, dispersively and distributively mixed, and agglomerated. This is all in compliance with well defined temperature limits. Custom-tailored property profiles lead to a wide variety of formulations, with efficient production in rather decreasing batch sizes.



1.Technical Specifications

Products Density, g/cm3
ISO 1183
Shore Hardness A, D
ISO 868
Tensile Strength, Mpa
IEC 811 1:1
Elongation at break, %
IEC 811 1:1
Congo Red at 200°C, minutes
IEC 811 1:1
Typical standards Applications
VNC 1711 1.39 70 13 330 45 BS 6746: TM2 Soft grade for sheathing
VNC 1724 1.41 72 11 290 100 JIS K6723: Class 1 Soft grade for sheathing with high glossy surface
VNC 1811 1.33 83 13 280 90 IEC 60502: PVC/A Sheathing grade for immersion pump cables, 700C rating.
VNC 1812 1.33 83 13 280 90 Conforming to UL 83 Insulation grade, 700C rating.
VNC 1806 1.47 80 14 270 45 BS 6746: TI1-TM1, TI2-TM2 High performance grade for Insulation and sheathing cables, medium hardness
VNC 1908 1.38 89 19 320 150 BS 6746: TI1-TM1-Type 9: IEC 60502: ST2 High performance grade for Insulation and sheathing cables, low density
VNC 1905 1.45 82 14 280 90 IEC 60502: ST1 Sheathing grade
VNC 1923 1.37 87 23 280 60 BS 6746: TI1-TM1 Insulation and sheathing grade easy processibility


2.Process: extrusion

90 Degree White Ants Resistant Soft Pvc Compound Sheath Grade Insulation 0

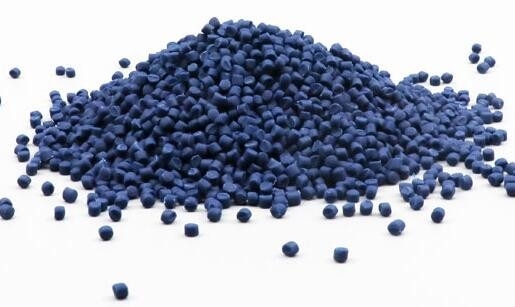

3.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.

4.color: Black and white, gre for Shealthing PVC compound
             Red, Yellow, Blue, White and black for Insulation PVC compound

5.Packing: Jumbo bag, 18 Tons per 20GP, 26Tons per 40GP

90 Degree White Ants Resistant Soft Pvc Compound Sheath Grade Insulation 1


6. Transportation and storage:

  After unpacking should be run out as soon as possible, or temporarily stored in sealed containers,
  to avoid the absorption of moisture in the air

  Store in a well-ventilated place, away from direct sunlight
  Keep away from heat, ignition sources, combustibles and incompatible materials
  The storage area must be cleaned and properly structured to avoid dust accumulation

7.Certifications:
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
90 Degree White Ants Resistant Soft Pvc Compound Sheath Grade Insulation 2
90 Degree White Ants Resistant Soft Pvc Compound Sheath Grade Insulation 3


8.How To order :

1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment
