RoHS Compliance Soft PVC Cable Compound 25Kg Bag For Industrial Usuage

Minimum Order Quantity : 1000 Kilograms Price : US 0.93-1.2/Kilogram
Packaging Details : Bags/Ton Bags 25kg, We could support packaging agreed on by both manufacturer and client ! Delivery Time : 7-10 Days
Payment Terms : L/C, T/T, Western Union, D/P, D/A Supply Ability : 1000 Ton/Tons per Month
Place of Origin: Jiangxi,China Brand Name: Longtai
Certification: Reach,RoHS, UL

Detail Information

Color: Colorful Usage: Electronic Wire & Cable
Material: Virgin Pvc Resin Degree: 70 80 105
Type: Synthetic Resin Product Name: Soft Virgin PVC Plastic Granules Profile Extruded PVC Granules
Shape: Granules Hardness: Customized,ShoreA70-85
High Light:

70 Deg PVC Cable Compound

,

Synthetic Resin PVC Cable Compound

,

A70 PVC Cable Compound

Product Description



RoHS Compliance PVC Compounds 25 Kg bag package for Industrial usuage Soft Cable PVC Compound



A cable compound is a material, usually petroleum-based, used to fill an electrical cable to limit intrusion from water and to provide extra insulation. Numerous types of cable including electrical and phone lines can be filled with cable compound by manufacturers and installers to protect the integrity of the line.



Jiangxi Longtai PVC Compounds meets UL, Reach, Rohs etc requirement and have the test reports. High quality & Prompt delivery time.



1.Technical Specifications



【1】Technical specifications of 70 ℃ pvc compound

Tensile strength MPa 20.5
Fracture tensile strain % 320
Ageing temperature 100
Ageing time h 168
Tensile strength after ageing MPa 22.5
Max change of tensile strength % +12
After ageing fracture tensile strain % 290
Max change of fracture tensile strain % -10
Thermal deformation % 28
Thermal ageing quality loss g/m2 19
200℃ thermal stability time min 90
20℃ volume resistivity Ω.cm 2.0*1011



【2】Technical specifications of 90 ℃ pvc compound

Tensile strength MPa 20
Fracture tensile strain % 330
Ageing temperature 100
Ageing time h 240
Tensile strength after ageing MPa 21.5
Max change of tensile strength % +8
After ageing fracture tensile strain % 310
Max change of fracture tensile strain % -6
Thermal deformation % 28
Thermal ageing quality loss g/m2 9
200℃ thermal stability time min 120
20℃ volume resistivity Ω.cm 2.0*1010



2.Use and standard: wire and cable

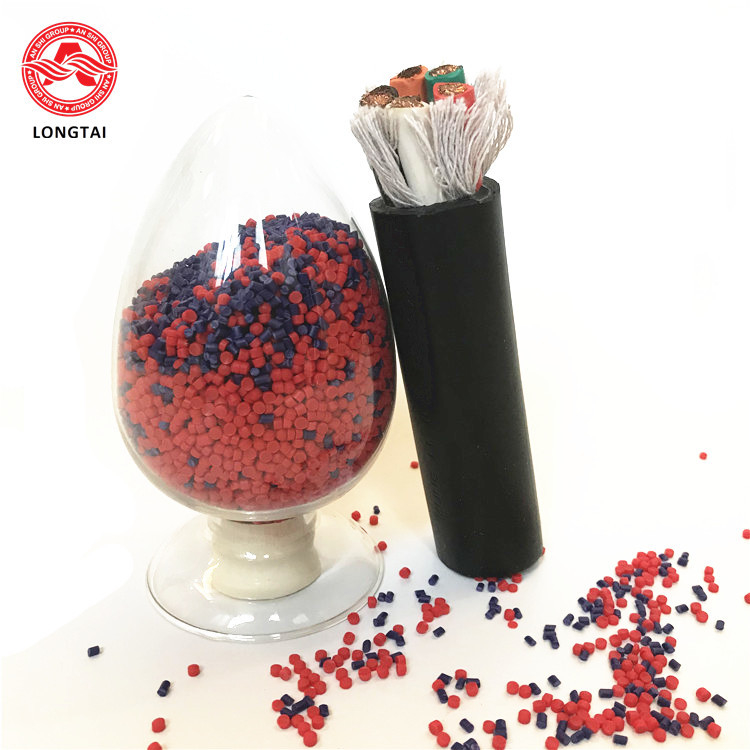

RoHS Compliance Soft PVC Cable Compound 25Kg Bag For Industrial Usuage 0

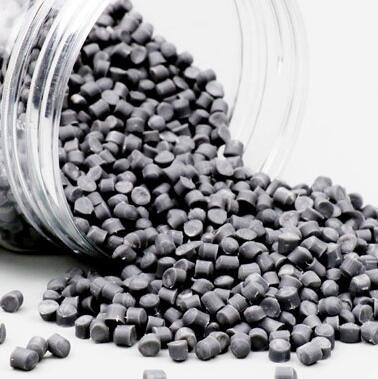

RoHS Compliance Soft PVC Cable Compound 25Kg Bag For Industrial Usuage 1

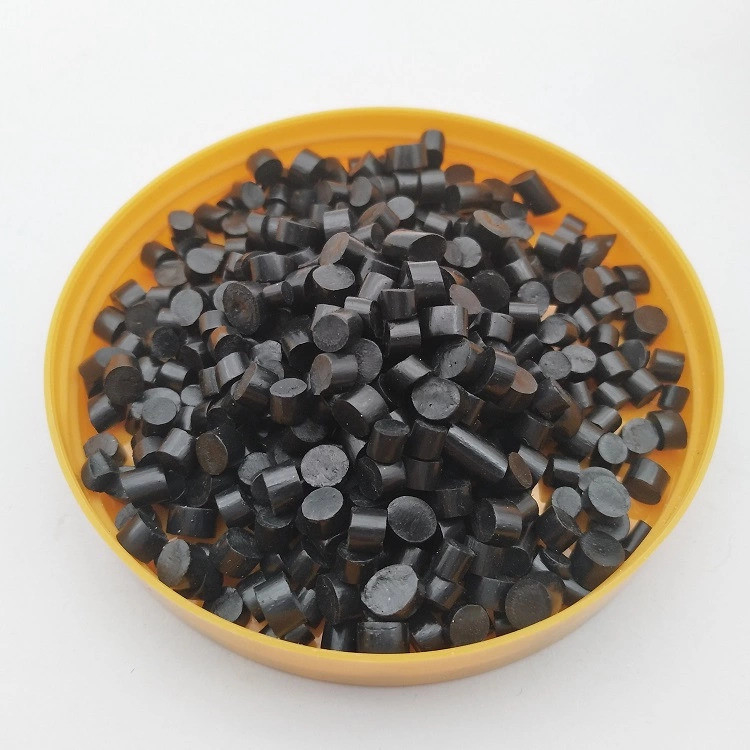

RoHS Compliance Soft PVC Cable Compound 25Kg Bag For Industrial Usuage 2



3.Process: extrusion



4.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.



5.color: Any colors, base on requirement.

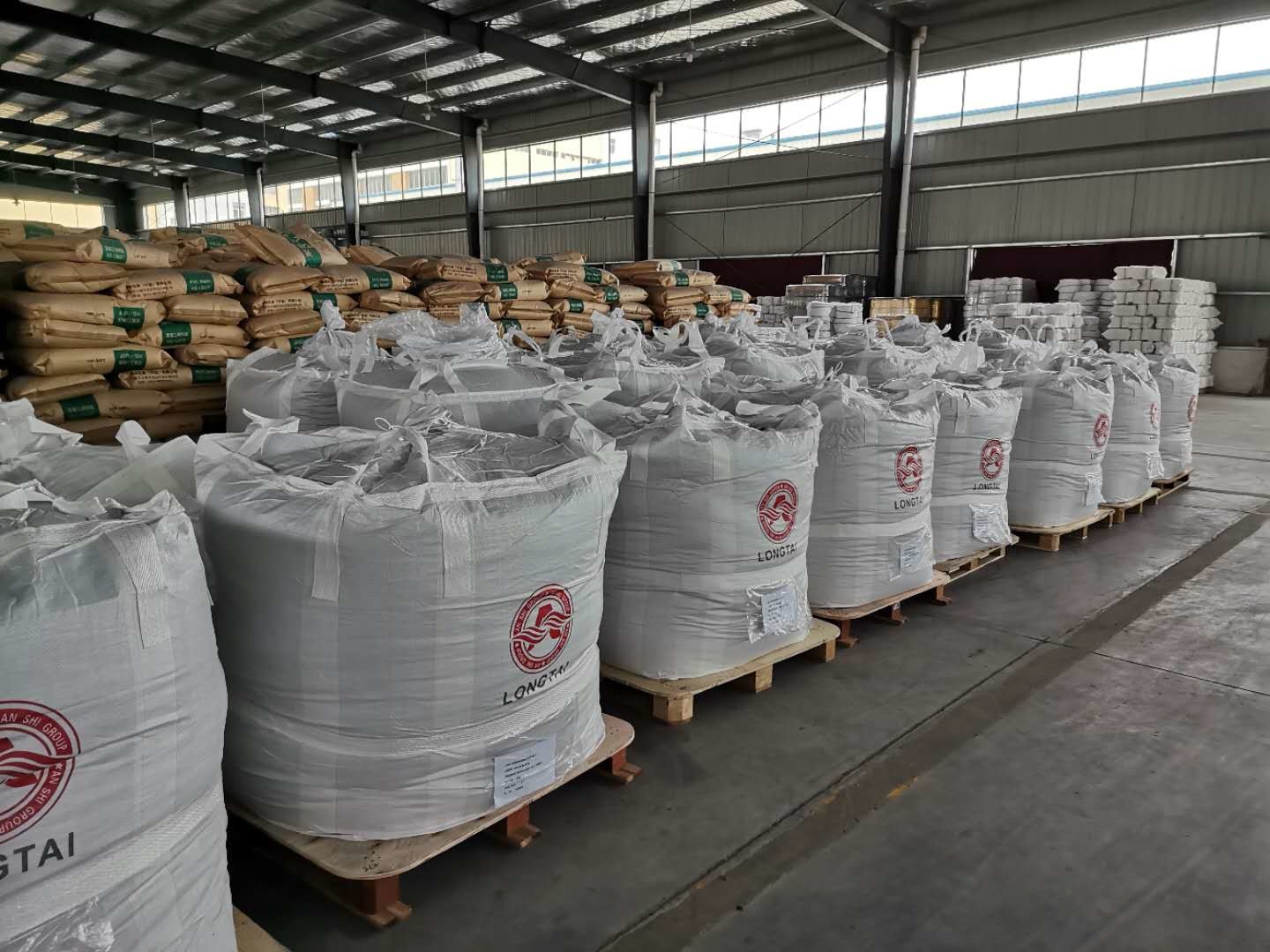

6.Packing: 25kg net weight per in a kraft bag,We could support packaging agreed on by both manufacturer and client !



RoHS Compliance Soft PVC Cable Compound 25Kg Bag For Industrial Usuage 3



7. Transportation and storage:

This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.



We will also produce the products according with customer's requirement, For example, Flame-resisting compounds, Low temperature resisting compounds, Heat-resistant compounds, and low smoke low halogen compounds, Transparent PVC compounds etc.



8.How To order :





1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order
 information
3. Kindly check the PI, everything is ok, we will start
 production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment




Any questions, please do not hesitate to contact us.
