ST2 LSHF Fire Retardant PVC Granules Insulated Compound For Generic Cables

Minimum Order Quantity : 1000 Kilograms Price : USD 0.93-1.2/Kilogram
Packaging Details : 25KG/small bag, 1000kgs/jumbo bag Delivery Time : 7-10 Days
Payment Terms : T/T, L/C, , Western Union Supply Ability : 1000 Ton/Tons per Month
Place of Origin: Jiangxi,China Brand Name: Anan
Certification: Reach, Rohs, UL, TSCA Model Number: PVC Granules

Detail Information

Color: Per Customer's Requirement Usage: Cable Sheathingt & Insulation
Material: Virgin Pvc Resin+oil Certificate: SGS,RoHS,UL, Reach, TSCA
Type: Normal Type Density: 1.45g/cm³~1.55g/cm³
Hardness: 75A~90A Test Method: BS 7655-4.2:2000
MOQ: 1000KGS Advantage: Stable Quality & Competitve Price
High Light:

Generic Cables PVC Granules

,

LSHF Cable PVC Granules

,

Generic Cables PVC Compound

Product Description

ST2 LSHF Cable PVC Granules Fire Retardant Insulated Compound For Generic Cables



Polyprime PVC compounds for power cables and telecom are prepared to respond effectively to the requirements of the industry standards. Characterized for an easy and effective processability and constancy of quality, securing a result highly profitable in the relation quality & cost.



1.Technical Specifications



Test Unit Standard
  Test Method is as per BS 7655-4.2:2000
Properties in the state as manufactured
  Tensile Strength   N/mm2 minimum 12.5
  Elongation at Break   % minimum 150
Properties After Aging in air oven
  Ageing conditions
    Temperature   100±2
    Duration h   7*24
  Tensile Strength   N/mm2 minimum 12.5
  Variation   % maximum 25

  Elongation at Break   % minimum 150
  Variation   % maximum 25
Bending Test at Low Temperature
  Test Conditions
    Temperature   -15±2
  Results to obtained       No Cracks
Elongation Test at Low Temperature
  Test Conditions
    Temperature   -15±2
  Results to obtained
  Elongation without break     minimum 20
Impact Test at Low Temperature
    Temperature   -15±2
  Requirement       No Cracks
Pressure Test at High Temperature
  Test Conditions
    Temperature   90±2
  Results to obtained for Depth of Indentation   % maximum 50
Resistance to cracking
    Temperature   150±2
  Requirement       No Cracks
Loss of Mass
  Ageing conditions
    Temperature   100±2
    Duration h   7*24
  Value to be obtained for
  Loss of Mass   mg/cm2 maximum 1.5
Hot Deformation Test(Only for specified radial thickness less than 0.4mm)
  (As per BS 6469-99.1,clause10)
  Deformation     maximum 40
Insulation Resistance Constant
  (As per BS 6469-99.2,clause8)
    Temperature     20±2
    K Value     0.0035





2,Use and standard: wire and cable



3,Process: extrusion

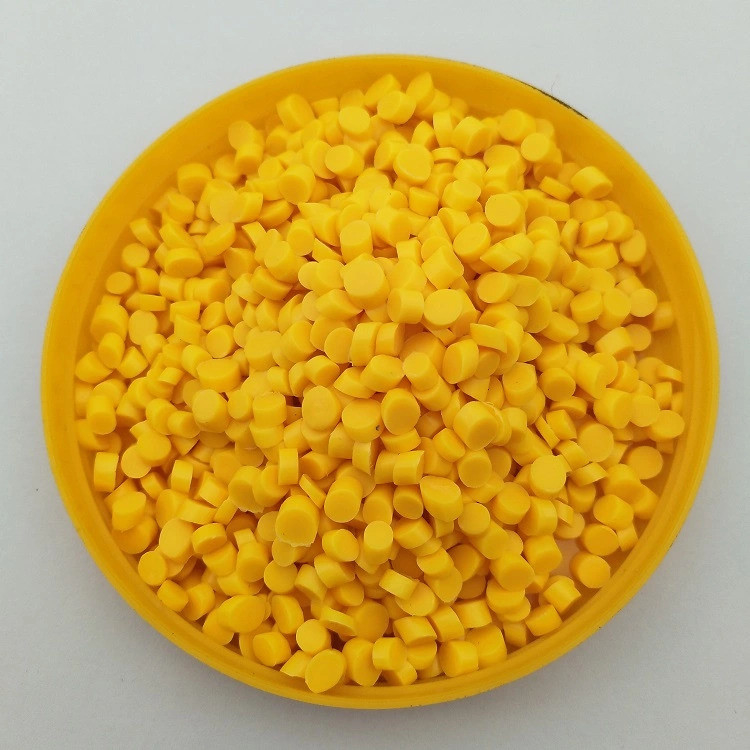

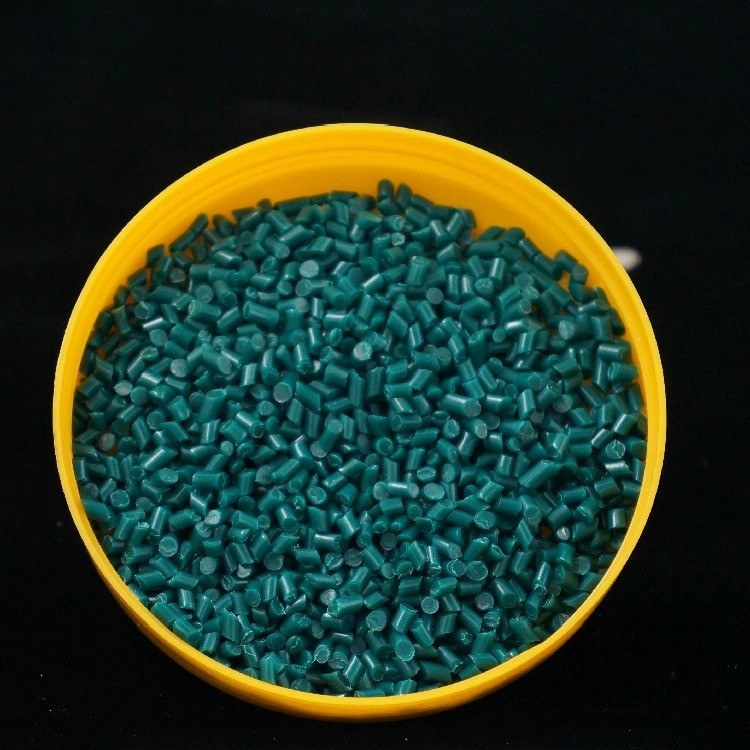

4,Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.



5,color: Any colors, base on requirement.



6,Packing: 25kg net weight per in a kraft bag.



7, Transportation and storage:

This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.



We will also produce the products according with customer's requirement, For example, Flame-resisting compounds, Low temperature resisting compounds, Heat-resistant compounds, and low smoke low halogen compounds, Transparent PVC compounds etc.



ST2 LSHF Fire Retardant PVC Granules Insulated Compound For Generic Cables 0



8.Factory Introduction:



Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
We always sincerely welcome any domestic and overseas customers with great enthusiasm.

ST2 LSHF Fire Retardant PVC Granules Insulated Compound For Generic Cables 1ST2 LSHF Fire Retardant PVC Granules Insulated Compound For Generic Cables 2



9.How To order :



1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment






ST2 LSHF Fire Retardant PVC Granules Insulated Compound For Generic Cables 3
