840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket
840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket 840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket 840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket 840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket
Contact Now

840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket

Minimum Order Quantity : 1000KGS Price : 1.5-2.3/kg
Packaging Details : Plastic bag with tube and pallet Delivery Time : 3-4 weeks
Payment Terms : L/C, T/T Supply Ability : 800 TONS/Month
Place of Origin: China Brand Name: Jiangxi Longtai
Certification: ISO 9001, Reach,Rohs Model Number: Ripcord

Detail Information
Feature: Eco-Friendly,High Tenacity Twist: S/Z,Twist,Non-twisted
Strength: High,Standard Material: Polyester / Nylon / Aramid
Yarn Type: Filament Color: Black,raw White,yellow
Packing: Plastic Bobbin,Paper Bobbin,based On Your Request Quality: High-quality Yarn
High Light:

Polyester String Nylon Ripcords

,

Fiber Optic Cables Nylon Ripcords

,

Nylon Ripcords Thread Yarn

Product Description





840/1 Nylon Ripcords for Fiber Optic Cables used to strip the jacket off of the cable



Ripcord is made of polyester, Nylon or aramid and is used for easy removal of cable jackets in fiber Optic Cables during cable installation. The ripcords are available in a variety of thicknesses and breaking strengths, lengths, coatings, Wicking & Non-Wicking, water-blocking, and colors as per requirements.



Here are some basic product specifications for our most popular nylon, polyester, and aramid ripcord options.



NYLON RIPCORDS



Most Popular Nylon Ripcord Constructions Strength Yield Diameter Elongation
Monocord (lbs) (yds/lb) (mm)
840/1 Nylon 18 5,300 0.008 20 %
1050/1 Nylon 20 4,250 0.01 22 %
1260/1 Nylon 28 3,500 0.011 20 %
Cabled (lbs) (yds/lb) (mm)
840/1/2 Nylon 34 2,650 0.02 21 %
1260/1/4 Nylon 112 885 0.042 20 %
1680/2/3 Nylon 220 450 0.055 22 %



POLYESTER RIPCORDS



Most Popular Nylon Ripcord Constructions Strength Yield Diameter Elongation
Monocord (lbs) (yds/lb) (mm)
1000/1 Poly 20 4,400 0.01 13%
1300/1 Poly 24 3,400 0.011 13%
1500/1 Poly 30 2,800 0.0145 13%
Cabled (lbs) (yds/lb) (mm)
1000/1/2 Poly 35 2,070 0.0235 20 %
1000/1/4 Poly 70 1,035 0.0315 20 %



ARAMID RIPCORDS



Most Popular Nylon Ripcord Constructions Strength Yield Diameter Elongation
Monocord (lbs) (yds/lb) (mm)
1000/1 Aramid 50 4,400 0.01 3-4%
1500/1 Aramid 72 2,800 0.0145 3-4%
Cabled (lbs) (yds/lb) (mm)
1000/1/2 Aramid 90 2,070 0.0235 4-5%
1000/1/3 Aramid 140 1,380 0.03 4-5%
1500/1/2 Aramid 140 1,380 0.0315 4-5%
1500/1/3 Aramid 200 935 0.0355 4-5%



Product Show:

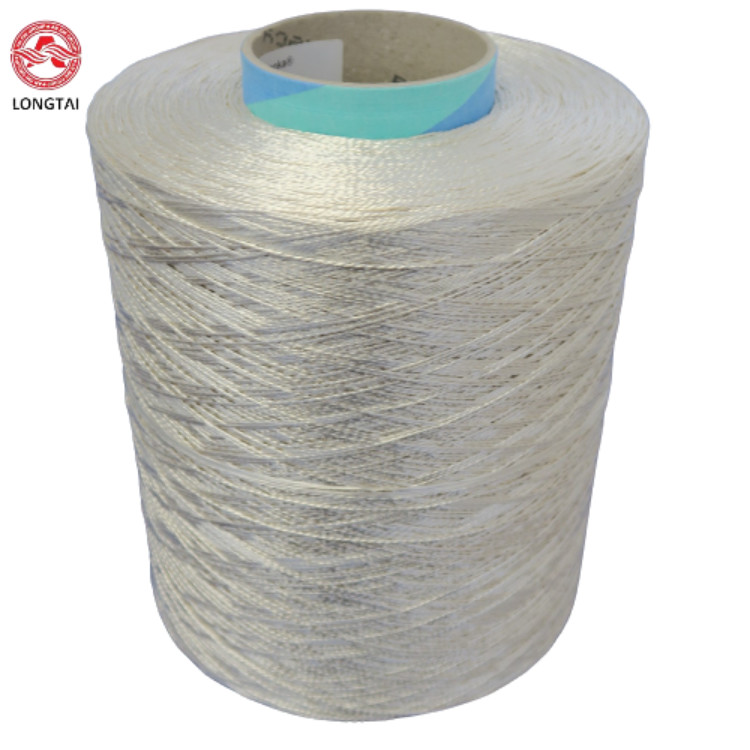

840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket 0

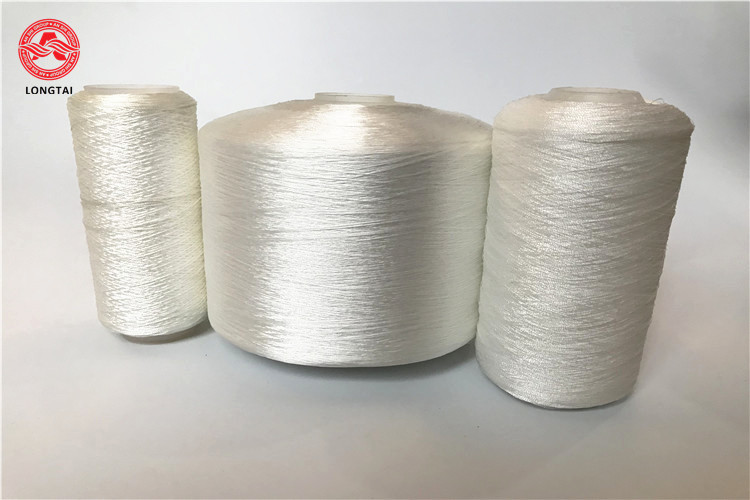

840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket 1

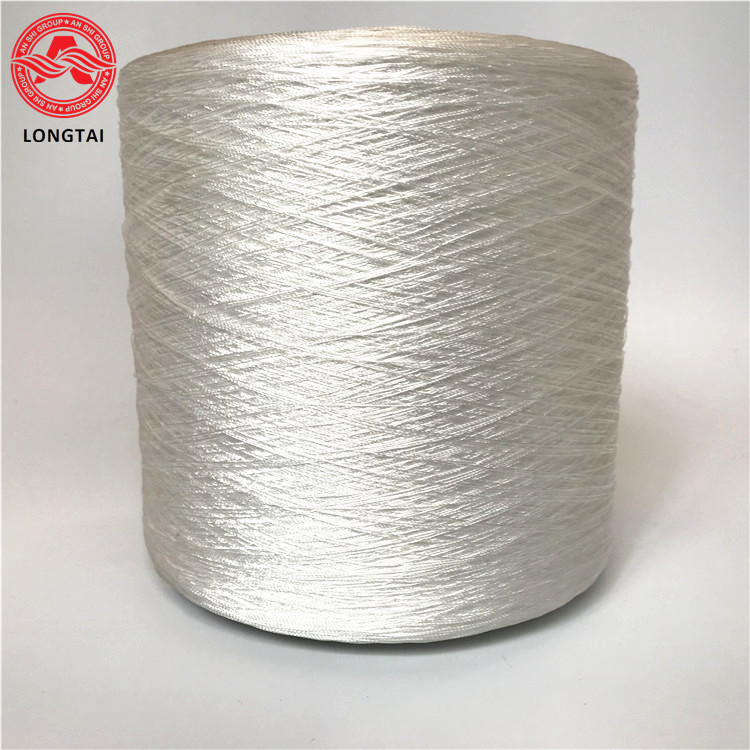

840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket 2

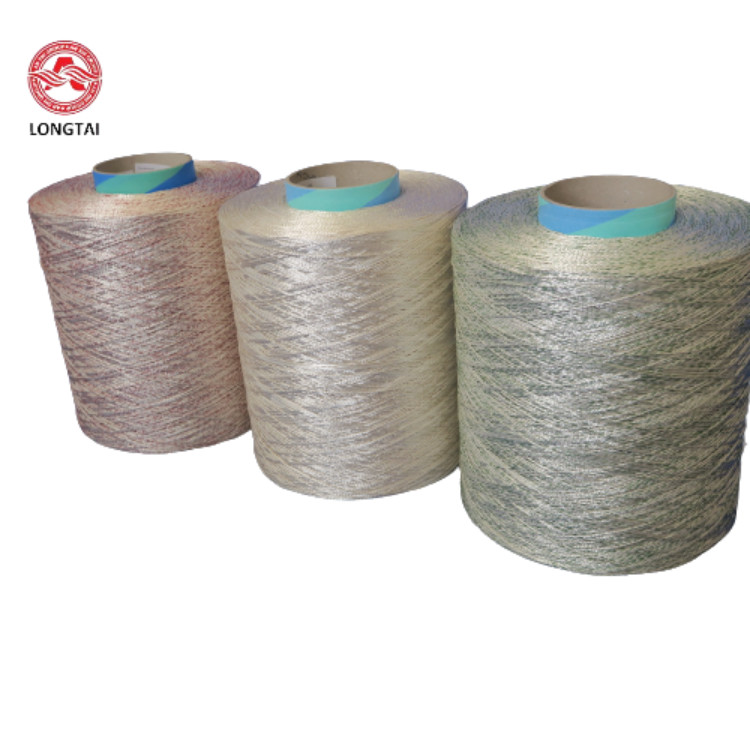

840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket 3



Jiangxi Longtai designs, develops, manufactures, and delivers innovative threads and yarns for wire and cable manufacturing or installation. We design wire and cable binders, ripcords of various materials, and strength members to meet or even exceed your requirements for abrasion resistance, processing speed, yield, gauge, and weight restrictions.



840/1 Nylon Ripcords For Fiber Optic Cables Polyester String To Strip The Jacket 4



Jiangxi Longtai is a global leader in developing and manufacturing engineered yarns and threads. We help customers who are having processing and design challenges, or material availability issues solve these problems by sharing our diverse experience, global supply chain partnerships and advanced material processing techniques.
