MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1ton | Price : | 800-1200/Ton |
|---|---|---|---|
| Packaging Details : | 900kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 900 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Customized | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Product Name: | Friendly Price Pvc Compound For Wire And Cable | Usage: | Electronic Wire,Plug,Cable |
| Appearance: | Granules / Pellets | Sample Time: | 2-5 Days |
| Operation: | Extrusion Or Injection Process | Density: | 1.4g/cm3~1.6g/cm3 |
| Hardness: | 86A-90A | Sample: | For Free |
| High Light: | 86A Polyvinyl Chloride Compound,Flame Resistance Polyvinyl Chloride Compound,OI 30 PVC Granules |
||
Product Description
Product Introduction:
Our PVC cable compounds range has a variety and meets the complete set of requirements for PVC wire & cables owing to BIS, BS, IEC, VDE etc. and meets the strongest needs for high voltage (11 kV) insulation, sheathing, data transfer, fire-resistance, high-temperature absorbent, flexibility at low temperature, resistance to UV, disdain to petrol & other chemicals, high level of ageing resistance, anti-termite & anti-rodent etc. and many other special requirements.
Our remarkable quality of compounds come from various processes which include our special manufacturing machine, specially designed for a distributive & dispersive mixing action and instilled with under controlled processing parameters leading us to consistent quality.
Parameters:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

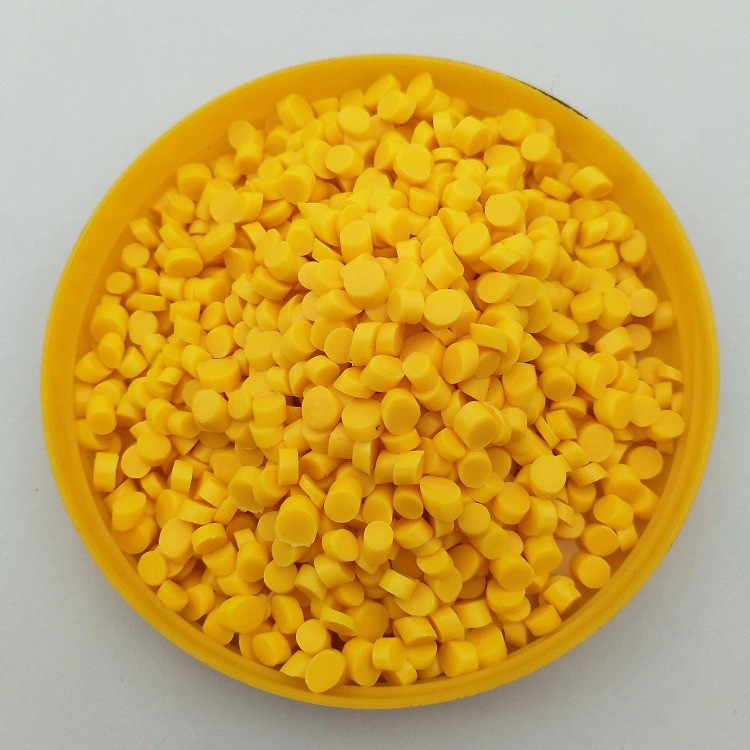

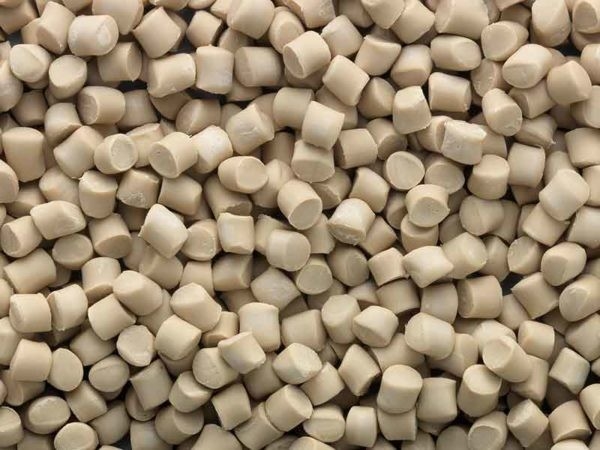

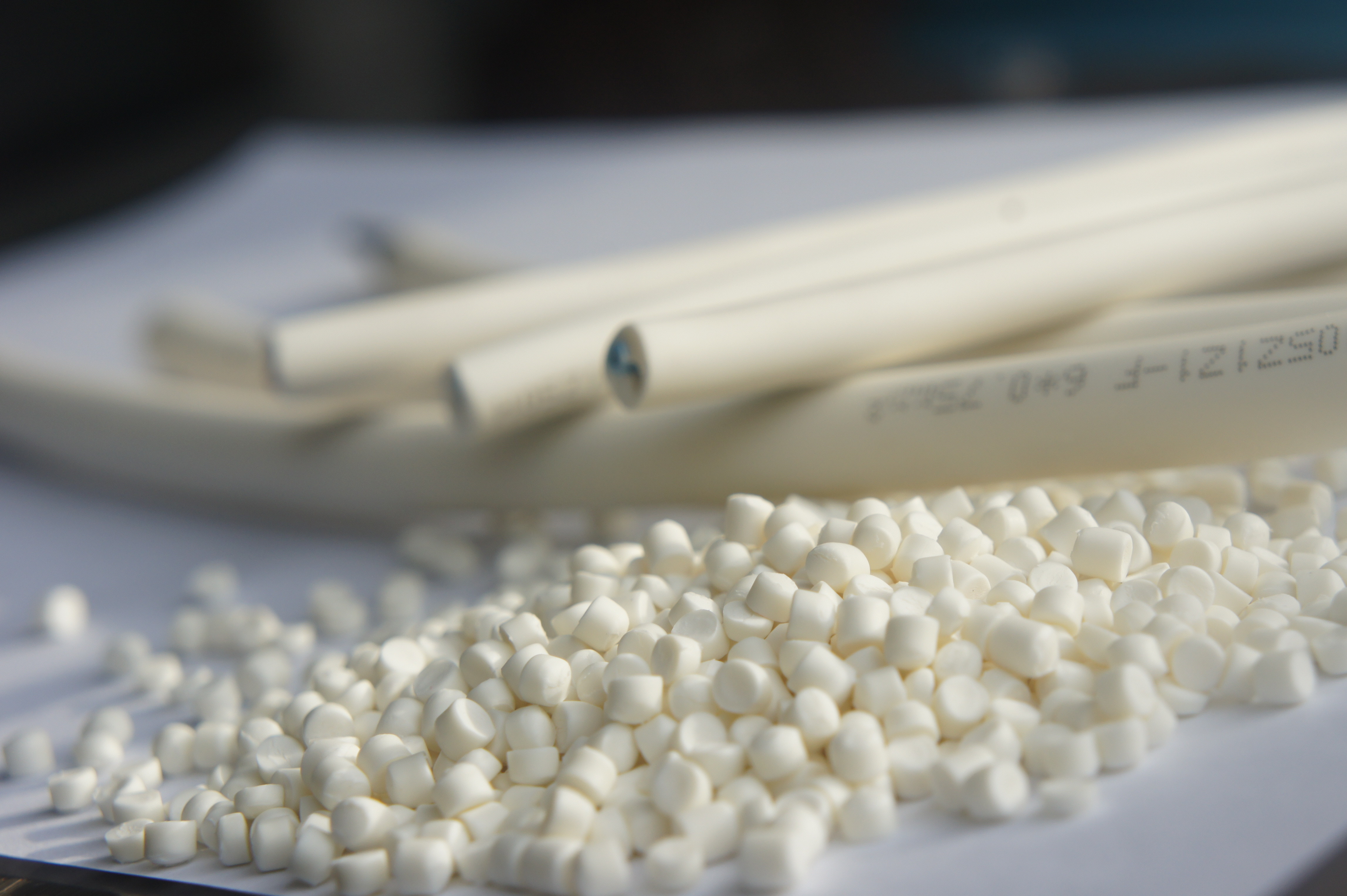

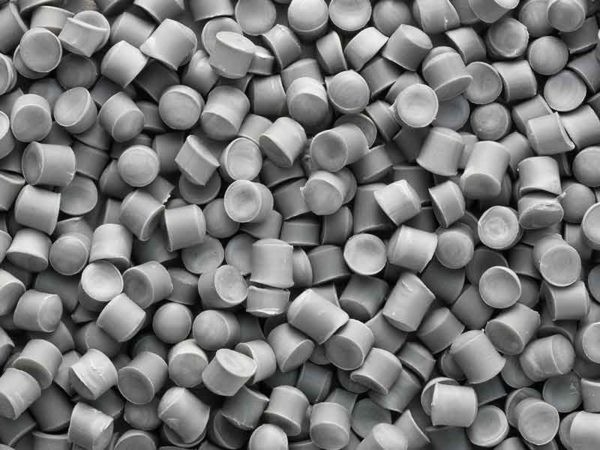

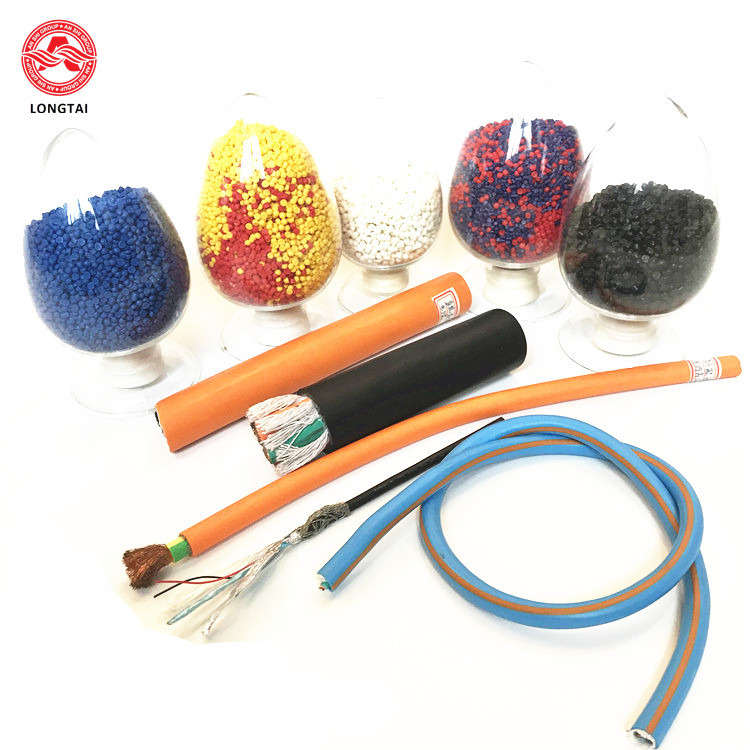

Product Show:
