Fire Retardant 1.5g/cm3 PVC Compound For Cable Insulation Sheathing
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000 kg | Price : | 790-960USD/ton |
|---|---|---|---|
| Packaging Details : | jumbo bag or little bag with 25kg | Delivery Time : | 5-7 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 400 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | UL,Reach,Rohs,ISO | Model Number: | PVC COMPOUND |
|
Detail Information |
|||
| Color: | White, Black ,Colorful | Application: | Cable Sheathing, Insulation |
|---|---|---|---|
| Material: | Virgin Pvc Resin | Product Name: | Cable Pvc Compound |
| Usage: | Electronic Wire,Plug,Cable | Appearance: | Smooth,Granule,Cylindrical |
| Sample Time: | 3-5working Days | MOQ: | 1000KGS |
| Density: | 1.3-1.60g/cm3 | Hardness: | 75A~90A |
| High Light: | 1.60g/cm3 PVC Compound,Cables Sheath PVC Compound,St-2 Pvc Granules |
||
Product Description
About PVC Compounds:
Cable PVC compounds are thermoplastic materials derived from processing polyvinylchloride compositions, produced as granules. Various properties are imparted to compounds depending on applications and item operation conditions. This is achieved by using plasticizers, stabilizers and modifiers in various combinations in compositions.
PVC based plasticizers have considerable mechanical strength and water resistance, high thermal resistance to low temperatures, good insulation properties, insoluble in gasoline and kerosene, abrasion, acid and alkali resistant. PVC based compounds are readily welded and glued.

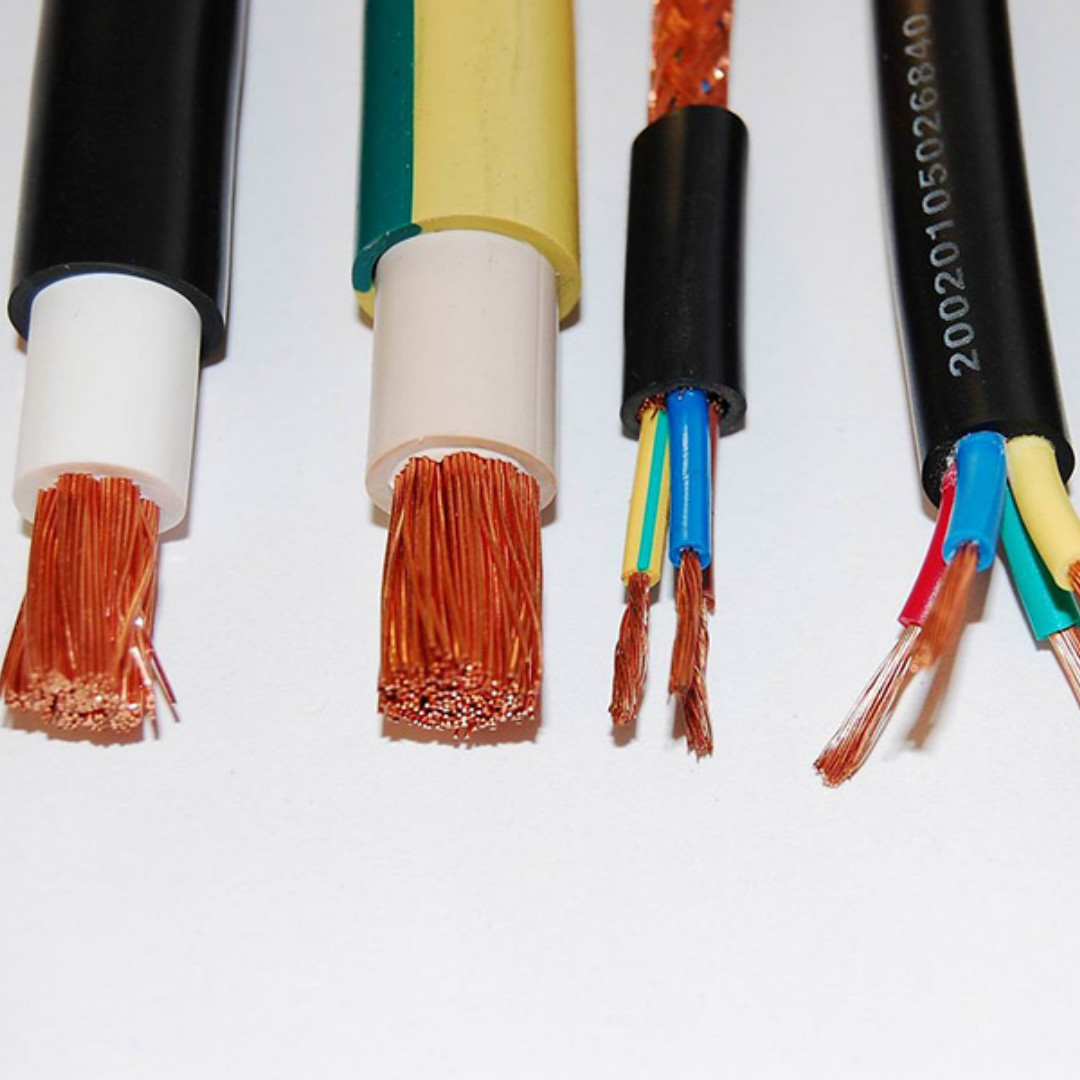

Cable PVC compounds are use in the cable and conductor industry for manufacture of insulation and protective wire and cable sheaths. The main final consumers of the PVC based cable and conductor products are energy and construction industries.
Flexible or plasticizer PVC has been used to produce cable and wire insulation and sheathing for more than 50 years. The performance specification for PVC formulations employed for wire and cable coating or jacketing depends upon the nature of the wire and cable and the use to which it is to be put. Typically, wire and cables in automobiles are required to withstand temperatures as high as 150°C due to the heat generated by the passage of electricity through the cable and as low as -40°C to ensure the insulation is preserved if the automobile is subject to extreme weather conditions. Low temperature performance is also required for cables such as outdoor extension cables that are used in cold climates.
Here are two examples:
Softener formulation adjustment can raise the continuous operating temperature limit to 105°C.
Aluminium trihydroxide (ATH) additive can systematically reduce flammability and smoke formation. Regulatory authorities such as the VDE, EN or UL issue standardized property profiles for insulation and coating compounds.
Cable PVC Compounds Types:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |
