60000D Cable PP Filler , PP Fibrillated Yarn Widely Used In Wire And Cable

Minimum Order Quantity : 1000 kgs Price : negotiable
Packaging Details : 5kg/roll, 30kg/roll, 45kg/roll Delivery Time : 25--30 days
Payment Terms : T/T, L/C Supply Ability : 1000 tons per month
Place of Origin: Jiangxi, China Brand Name: Longtai, ANAN
Certification: REACH, ROHS, ISO 9001 Model Number: pp filler yarn

Detail Information

Advantage: Good Effect Of Cable Filling, Suitable For Large Cable Breaking Strength: 0.2-2g/d
Breaking Elongation: <20% Hot Shrinkage Rate: 4.5-6%
Specification: 9000D -- 130KD Color: White
High Light:

60000D Cable PP Filler

,

Homopolymer PP Fibrillated Yarn

,

Wire PP Fibrillated Yarn

Product Description



Lower Price Cable PP filler Fibrillated PP yarn 60000D widely used in wire and cable

Cable fillers Yarn are Polypropylene homopolymer fibrillated yarn which aids in cable construction by filling the void spaces in the cable by occupying the gap created due to the cable construction of more than one conductor. We can offer zero halogen flame retardant fillers and flat twisted forms as well.



In a wide range of denier from 3000D 300KD, widely used in wire and cable. These are sold in unwrapped rolls, rolled on a paper core and can be worked and continued along their entire length.



Appearance : The product should be white, dry clean, soft and uniform thickness.



Main specification:



Specification

Length/KG

(M/KG)

Elongation (%)

Pulling strength (N)

Heat shrinkage (%)

Twisted diameter (mm)

2000D 4500 15↓ 30↑ 2.5↓ 0.4
4000D 2400 15↓ 50↑ 2.5↓ 0.5
5000D 1800 15↓ 55↑ 2.5↓ 0.6
8000D 1125 15↓ 80↑ 2.5↓ 1.0
10000D 935 15↓ 90↑ 2.5↓ 1.2
12000D 750 15↓ 100↑ 2.5↓ 1.5
15000D 600 15↓ 150↑ 2.5↓ 1.8
20000D 450 15↓ 200↑ 2.5↓ 2.2
30000D 300 15↓ 300↑ 2.5↓

2.6

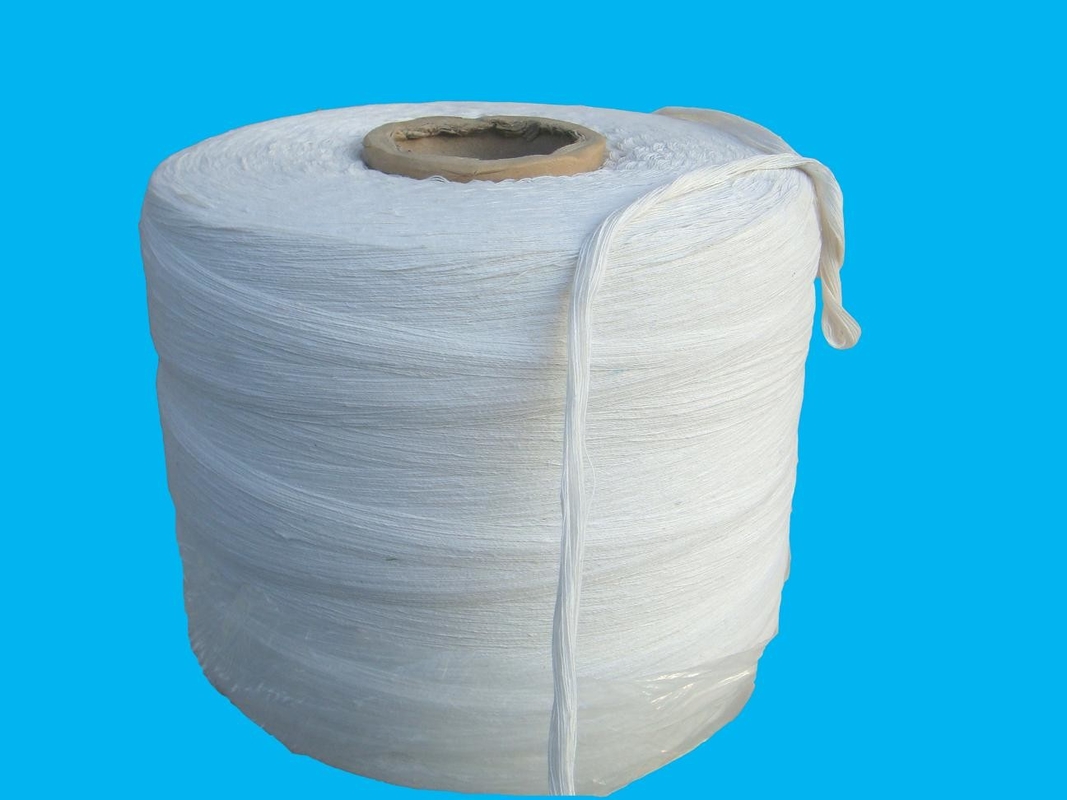

60000D Cable PP Filler , PP Fibrillated Yarn Widely Used In Wire And Cable 0



Features:



1. 100% pp filler yarn or PP + Coca3 for wire and cable
2. ROHs/REACH Standard;
3. have patent
4. for wire cable filling
5. certificate: ISO 9001 by AF



Item Unit Spec of standard filler Spec of common filler
Linear Density D +/-10% +/-10%
Breaking strength g/D 0.6--1.4 0.2--0.6
Breaking elongation % <20 <20
Hot shrinkage rate % 4.5 6





Specification data sheet for reference:



Density 9KD 18KD 30KD 60KD 90KD 120KD 195KD 630KD 1130KD 1630KD 1935KD
g/m+/-10% 1g/m 2g/m 3.67g/m 6.67g/m 10g/m 13.3g/m 21.67g/m 70g/m 112g/m 182g/m 215g/m
Diameter 1mm 2mm 3mm 4mm 5mm 6mm 8mm 12mm 16mm 20mm 33mm





Standard Filler Advantage:



A. The best price of good quality
B. Excellent service and fast delivery
C. Effective and attractive packaging



Normal Grade is suitable for large cables and is low in price. It is used for example in power cables, aerial cables, rubber cables, etc.



Common Filler Advantage:



cheap price, suitable for large cable



High Grade is suitable for all kinds of cables with a lower unit weight and reasonable price, no joint inside.

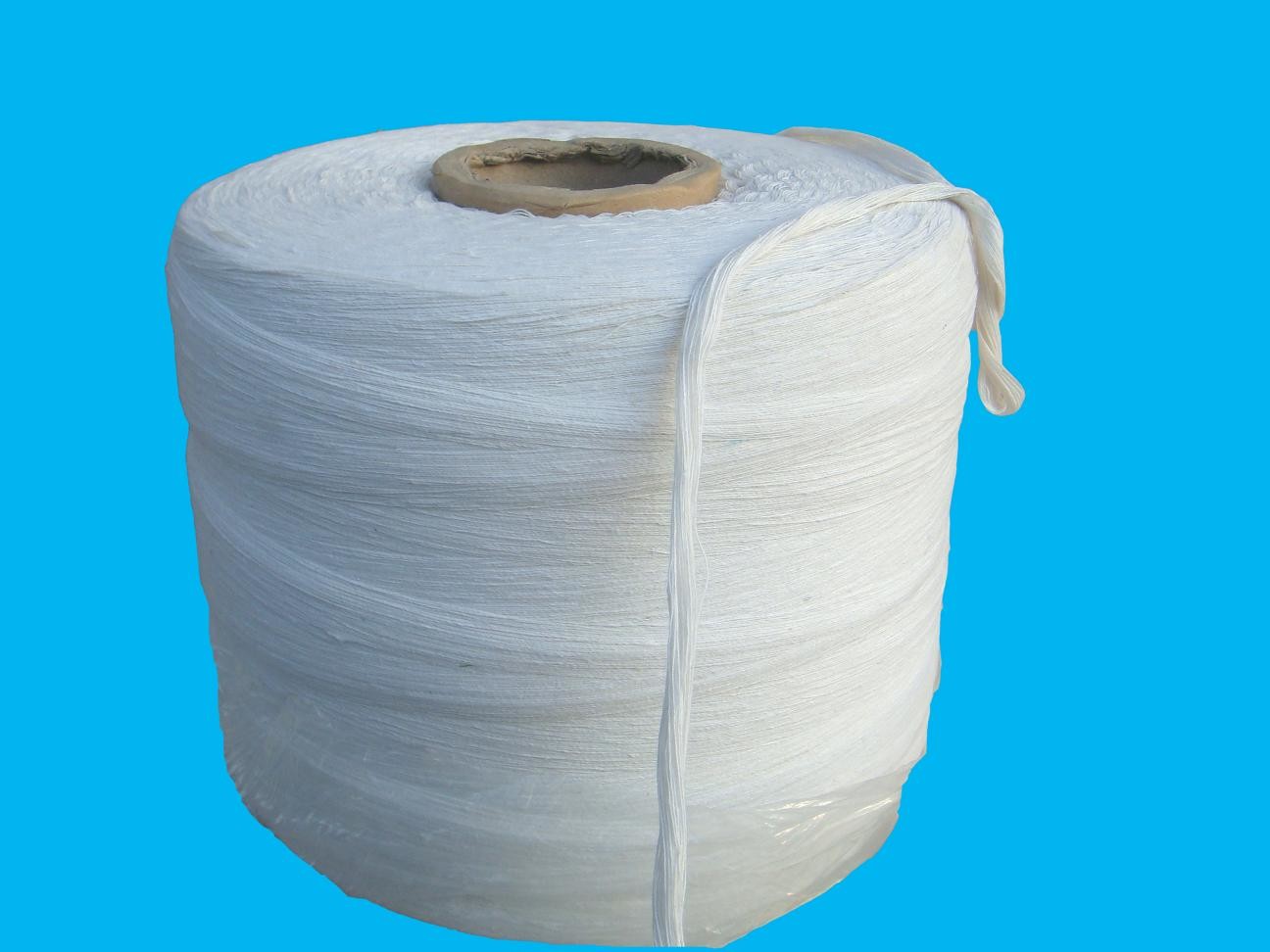

60000D Cable PP Filler , PP Fibrillated Yarn Widely Used In Wire And Cable 1



PP filler material:



pp rope  Specificatioms
pp rope Item Unit pp rope standard Remark
Fineness D specification±8% 3000D-1136000D
pp rope Breaking g/d >1.5-2.5
pp rope tenacity
Tensibility % <20
shrinkage % <10 120*30min
in hot air
Appearance Natural  Color   or   White,color
obvious  stations






Our Services:

A variety of products
Enough stock
Fast delivery time
Specifications can be customized
24 hours service
Prompt reply
Small orders are accepted
Perfect after-sale service





Why chooose us  :


1. We have more than 15 years’ production experience and

more than 7 years exporting experience
2. A full set of advanced facilities and a team of skilled tech

workers
3. Factory direct sales with competitive price
4. Best materials selection and strict quality control
5. Considerate service, prompt delivery, each inquiry will be

consulted very carefully
6. A professional and excellent working team

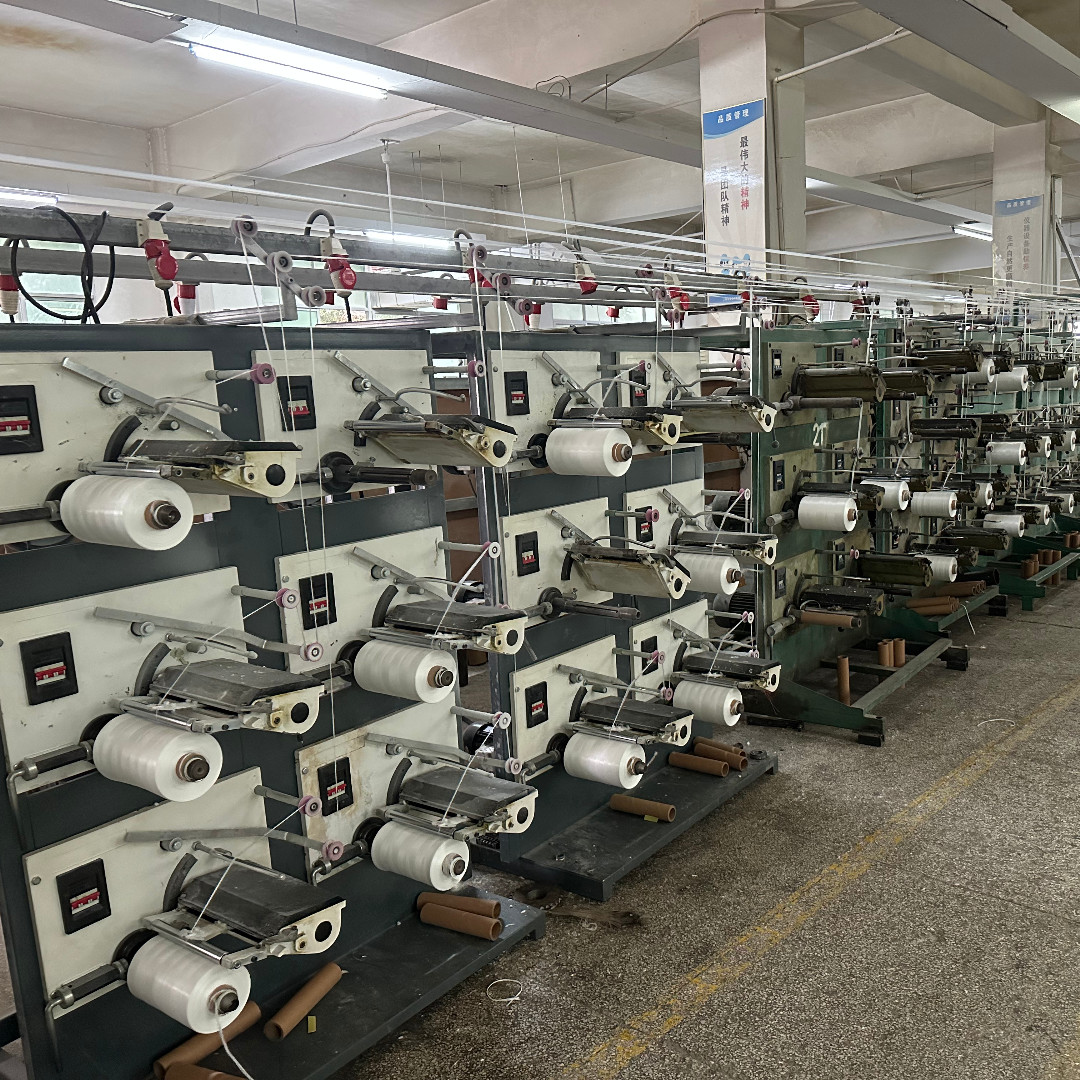

60000D Cable PP Filler , PP Fibrillated Yarn Widely Used In Wire And Cable 2

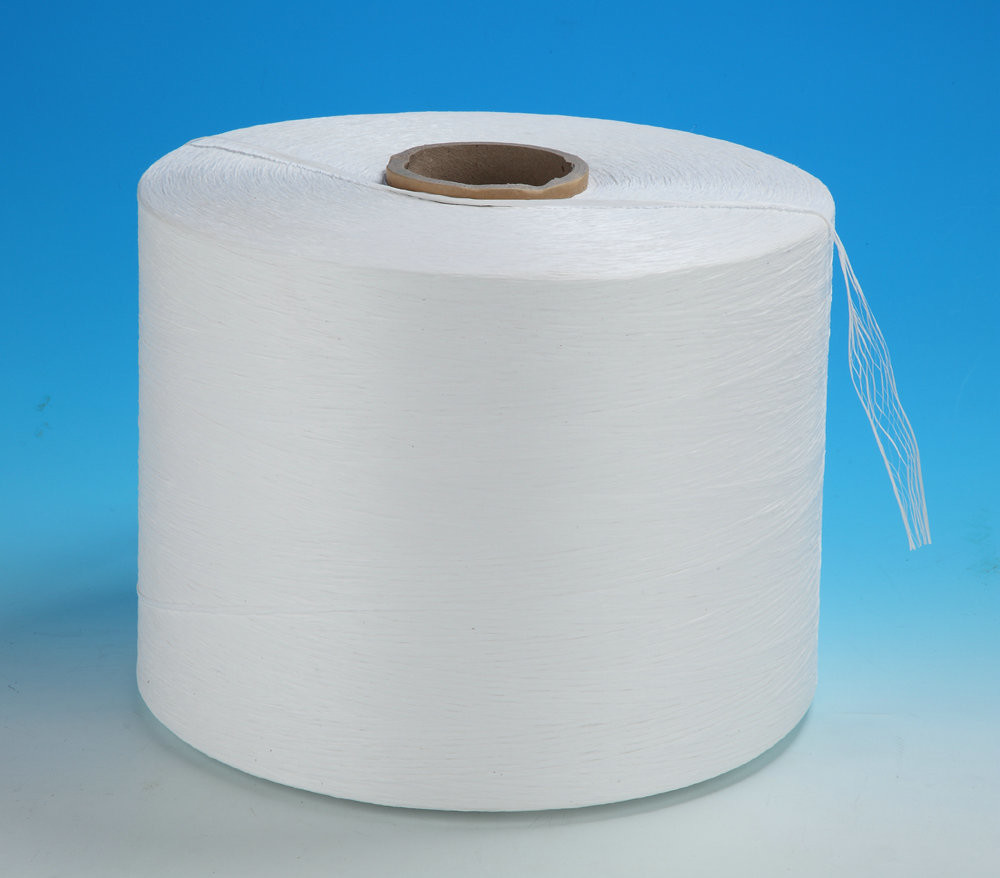

60000D Cable PP Filler , PP Fibrillated Yarn Widely Used In Wire And Cable 3

60000D Cable PP Filler , PP Fibrillated Yarn Widely Used In Wire And Cable 4
