MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1 ton | Price : | 850-990/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Green, Black, Red, Yellow, Blue, Grey, White | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Product Name: | PVC Compound For Cable Extruder | Usage: | Electronic Wire,Plug,Cable |
| Sample Time: | 3 Days | Operation: | Extrusion Or Injection Process |
| Density: | 1.4g/cm3~1.6g/cm3 | Hardness: | 86A-90A |
| MOQ: | 3000KGS | Delivery Time: | 7 Days |
| High Light: | 85C Insulation PVC Compounds,Flame Retardant Insulation PVC Compounds,FR Heat Resistant PVC Compound |
||
Product Description
PVC compounds for power cables and telecom are prepared to respond effectively to the requirements of the industry standards. Characterized for an easy and effective processability and constancy of quality, securing a result highly profitable in the relation quality & cost.
Typical applications
The main application fields of cable insulation mass produced with PVC cable compounding systems are power transmission up to the aforesaid 10 kV, domestic installations above all in private housing, and data transmission in general. The automobile industry almost exclusively uses soft PVC compounds.
Product Name:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

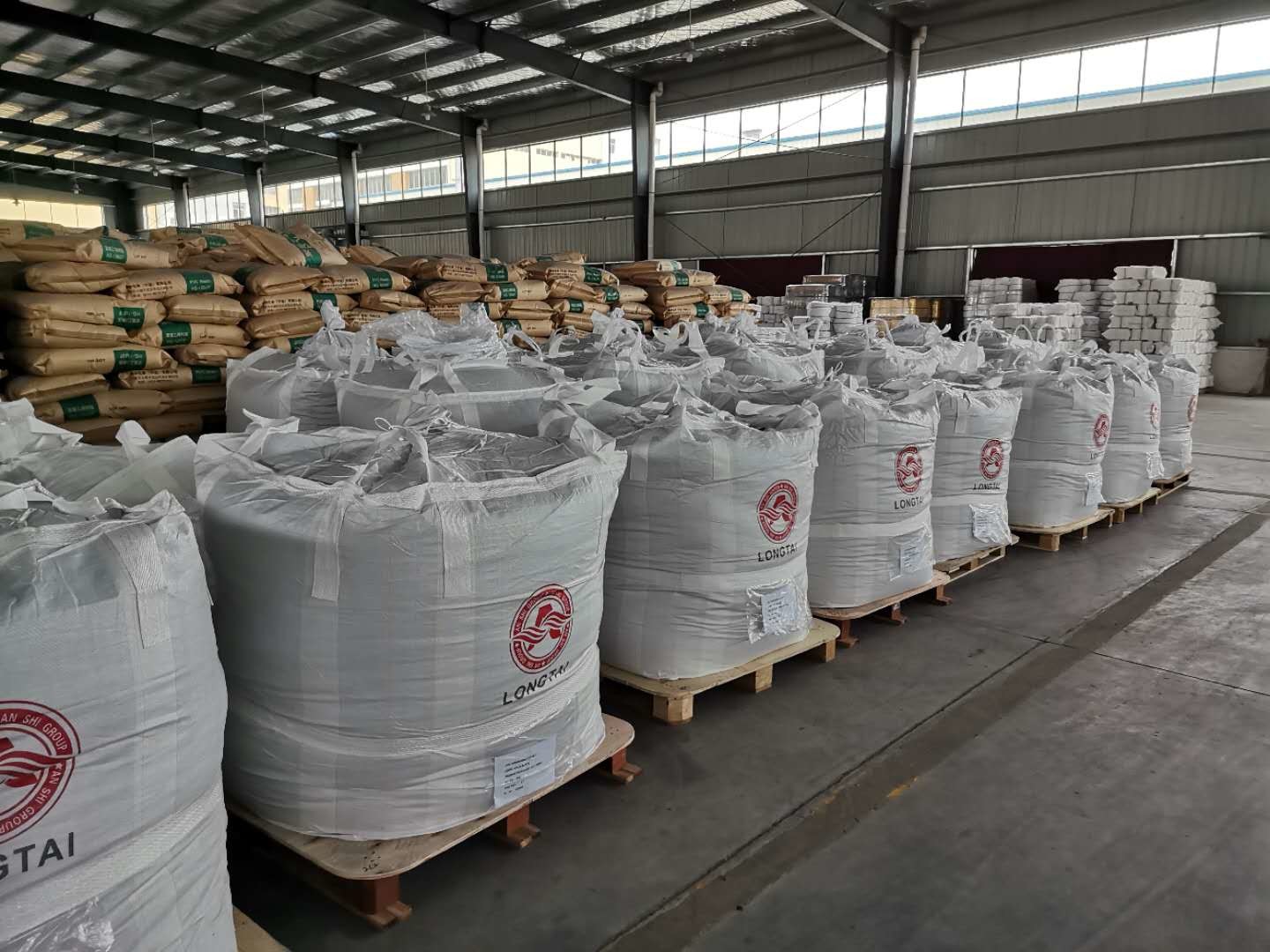

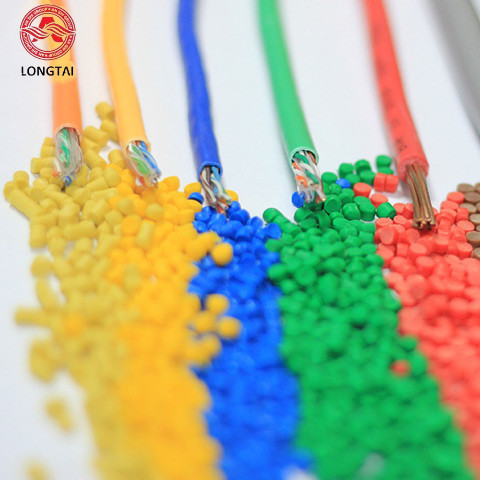

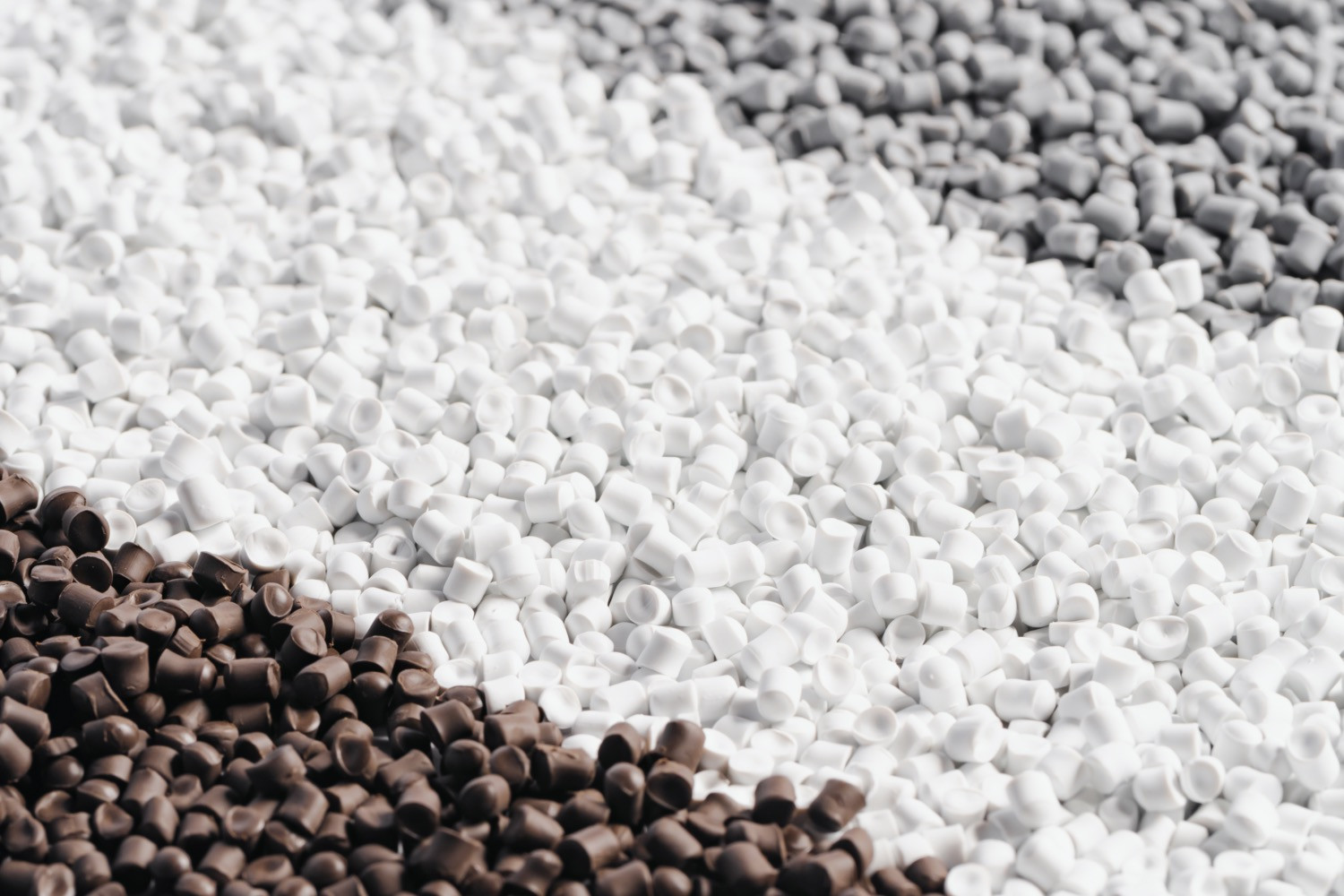

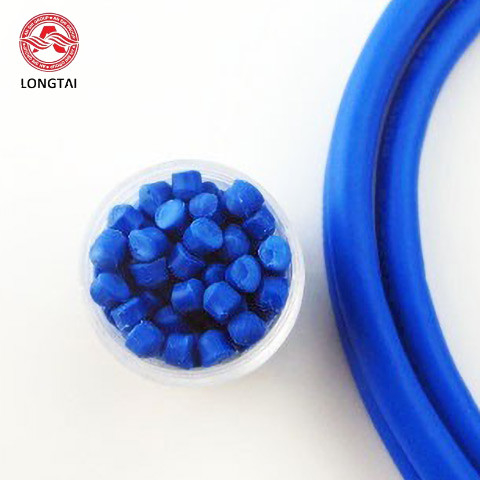

Product Show:
About us:
Jiangxi Longtai New Material Co., Ltd, founded in 2002, was successfully listed the New OTC Market in 2016, stock code: 836898. Longtai is specialized in the development and sales of all kinds of new materials, wire&cable materials and ariculture products. It has passed ISO9001:2008. All product meet RoHS and REACH by SGS. More than 30% of products are exported to Europe, America, Janpan, Southeast Asia and Africa, and so on.
Main Products:
1. fibrillatedPP twine,PP rope,PP split film rope,PP packing rope,baler twine,banana rope,all kinds of agricultural rope,garden rope.
2.PP cable filler yarn,optical cable filler yarn,flame retardant filler yarn,Halogen FR PP filler,cable material.
3.Sewing thread,polyester thread,nylon thread,polyester twine.
4.Cotton yarn,cotton twine,and recycled cotton yarn.
5.Aramid yarn,polyester yarn,nylon yarn and other special fiber.
6.Cotton paper,AL-PET tape,glass fiber and other filling and shielding materials.
Any questions, feel free to contact us !
