MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000 kg | Price : | 790-960USD/ton |
|---|---|---|---|
| Packaging Details : | jumbo bag or little bag with 25kg | Delivery Time : | 5-7 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 400 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | UL,Reach,Rohs,ISO | Model Number: | PVC COMPOUND |
|
Detail Information |
|||
| Color: | Customised | Application: | Cable Sheathing, Insulation |
|---|---|---|---|
| Material: | Virgin Pvc Resin | Product Name: | Cable Pvc Compound |
| Usage: | Electronic Wire,Plug,Cable | Appearance: | Smooth,Granule |
| Sample Time: | 5 Working Days | MOQ: | 2000kgs |
| Density: | 1.35-1.60g/cm3 | Hardness: | 75A~90A |
| High Light: | Power Flexible Cables PVC Compound,1.45g/Cm3 PVC Compound,89A PVC Compound |
||
Product Description
About PVC Compounds:

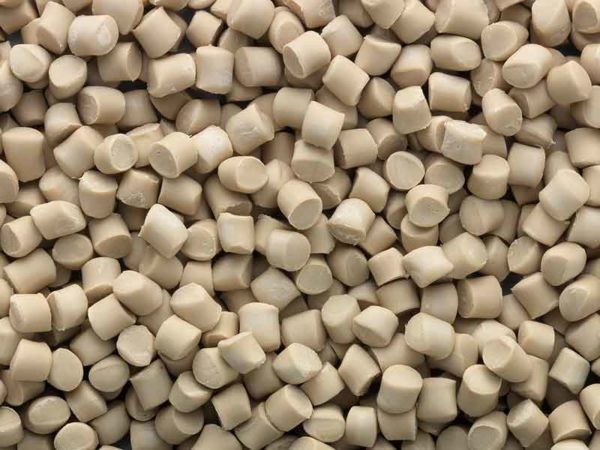

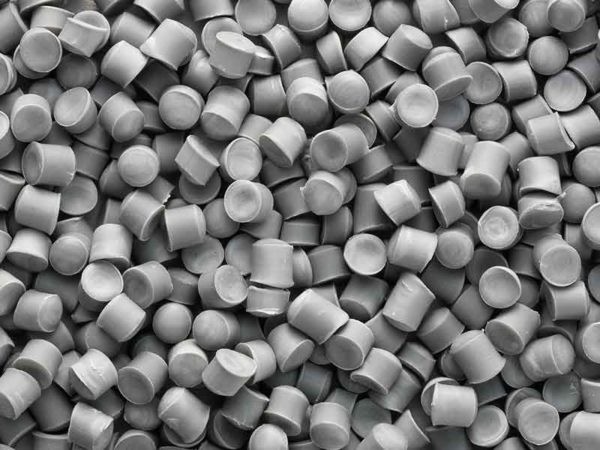

Cable PVC compounds are thermoplastic materials derived from processing polyvinylchloride compositions, produced as granules. Various properties are imparted to compounds depending on applications and item operation conditions. This is achieved by using plasticizers, stabilizers and modifiers in various combinations in compositions.
PVC based plasticizers have considerable mechanical strength and water resistance, high thermal resistance to low temperatures, good insulation properties, insoluble in gasoline and kerosene, abrasion, acid and alkali resistant. PVC based compounds are readily welded and glued.

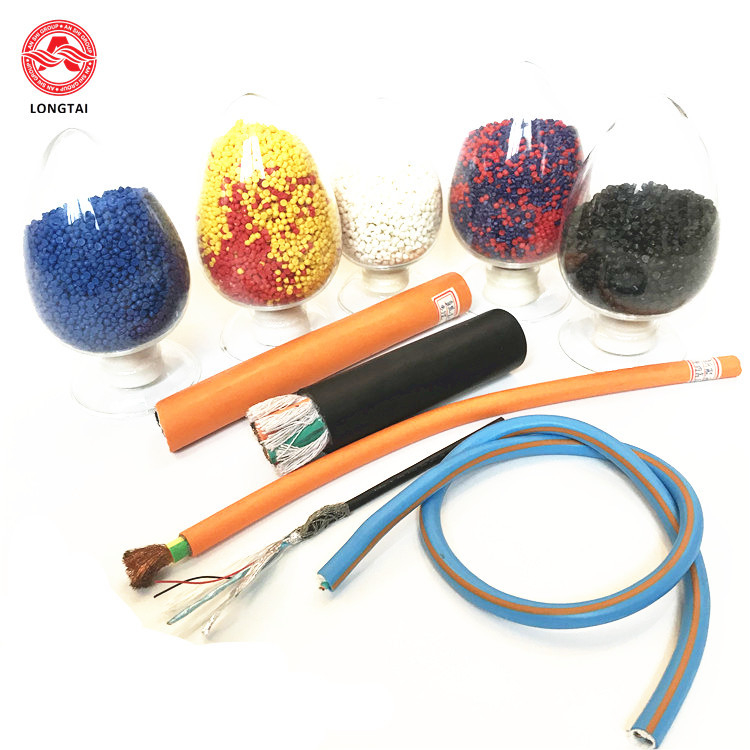

Cable PVC compounds are use in the cable and conductor industry for manufacture of insulation and protective wire and cable sheaths. The main final consumers of the PVC based cable and conductor products are energy and construction industries.
Here are two examples:
Softener formulation adjustment can raise the continuous operating temperature limit to 105°C.
Aluminium trihydroxide (ATH) additive can systematically reduce flammability and smoke formation. Regulatory authorities such as the VDE, EN or UL issue standardized property profiles for insulation and coating compounds.

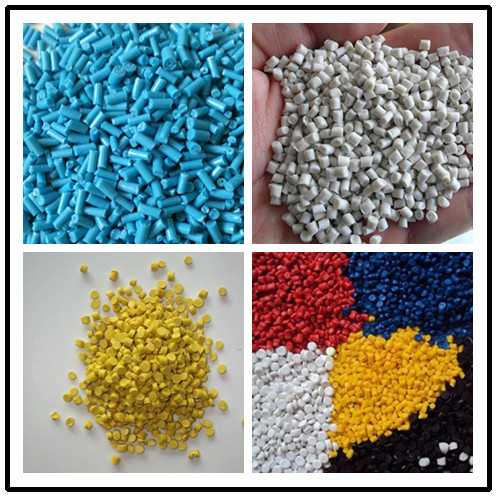

Cable PVC Compounds Types:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |
