200D 500D High Tenacity Zxion Yarn For Optical Fiber Cable Filler

Minimum Order Quantity : 100KG Price : Negociable
Packaging Details : Woven bags or cartons Delivery Time : 20~25 days after receiving deposit
Payment Terms : T/T, L/C, Western Union Supply Ability : 40 Tons per month
Place of Origin: Japan Brand Name: Longtai
Certification: SGS/ISO/RoHS Model Number: Zxion yarn

Detail Information

Material: Zxion Color: Golden Yellow
Denier: 50D, 150D, 200D, 500D Packing: 2-10kg/spool
Usage: Optical Fiber Cable Name: Zxion Yarn
High Light:

High Tenacity Zxion Yarn

,

500D Zxion Yarn

,

200D Cable Filler Yarn

Product Description

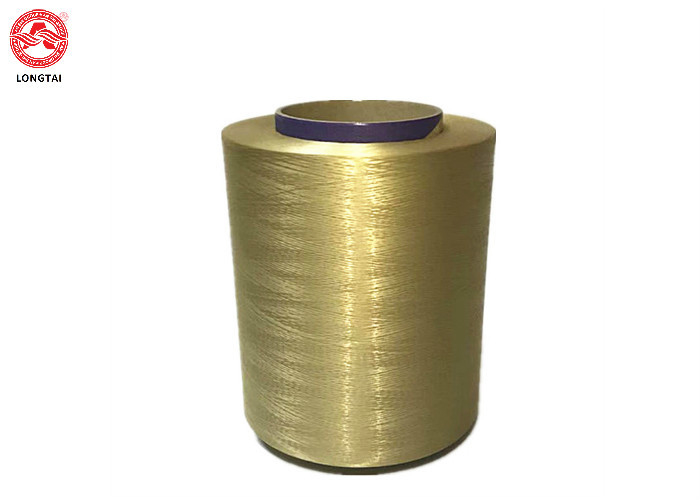

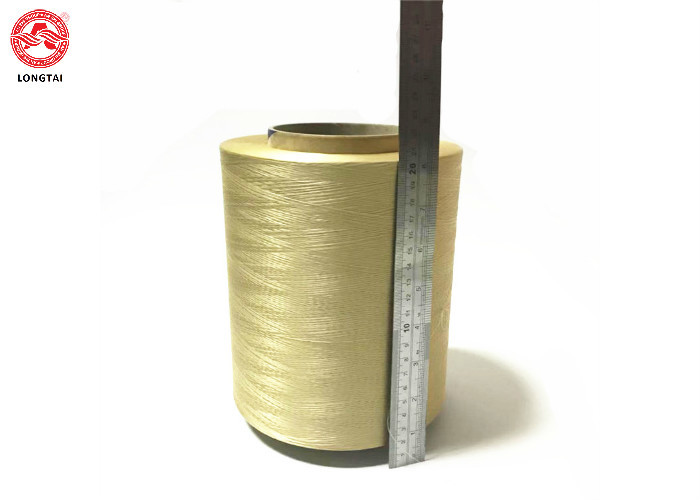

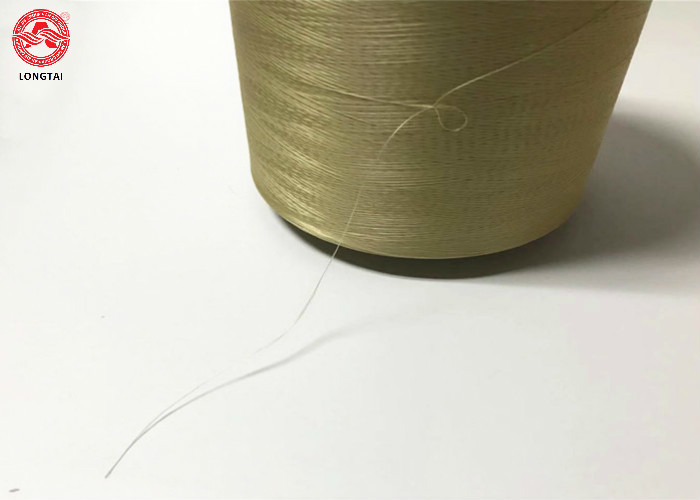

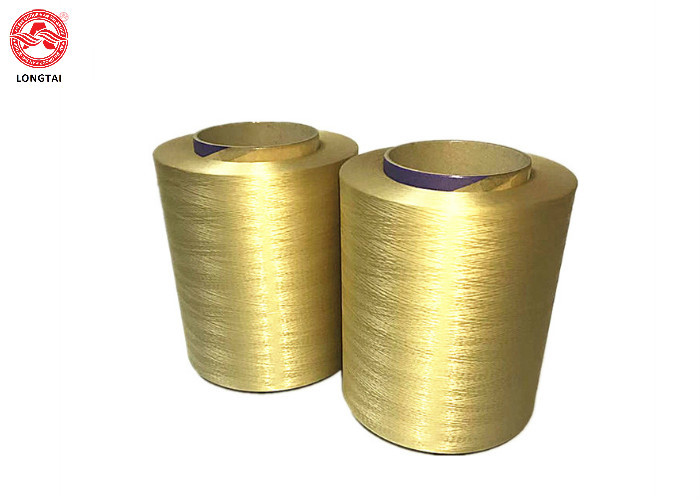

200D 500D High Tenacity Zxion Yarn For Optical Fiber Cable Filler



Description:



Zxion yarn, with high tenacity up to 30cN/dtex, high elasticity 1000cN/dtex, is widely used for electrical and electronic fields, headset, endoscope, optical fiber, printed wiring board and so on.



1. High strength: strength up to 30cN/dtex (=4.2G*Pa) or more (high strength level)

2. High elasticity: elasticity rate reaches 1000cN/dtex (=140G*Pa) (high elasticity level)

3. Low dielectric rate: excellent electrical characteristics, very suitable for ultrasonic accessories

4. Low volume expansion: The size change due to temperature is very small.

5. Fine fineness: The fineness is below 220dtex, which can correspond to the production of single filament fineness of 2.3dtex.

6. Various levels: high strength level, high weather resistance level, etc.

7. Others: vibration attenuation, low water absorption, heat resistance, acid resistance, cut resistance, low creep, etc.



Specifications:


dtex
Brand (Density)
Bending Resistance of 220dtex
the number of times
18dtex 28dtex 56dtex 110dtex 137dtex 220dtex
555,556m/kg 357,143m/kg 178,571m/kg 90,909m/kg 72,993m/kg 45,455m/kg
Strength Dia Strength Dia Strength Dia Strength Dia Strength Dia Strength Dia
kg μm kg μm kg μm kg μm kg μm kg μm
ZXION VS
(1.41g/㎤)
121,680 0.44 55.3 0.69 70.7 1.37 97.6 2.69 136.9 3.35 153.8 5.38 198.3
ZXION TS
(1.41g/㎤)
84,660 0.53 55.3 0.83 70.7 1.66 97.6 3.25 136.9 4.05 153.8 6.51 198.3
Kevlar (1.44g/㎤) 40,780 - - - - 1.16 97.3 2.28 134.9 2.84 151.6 4.55 190.7
Technora (1.38g/㎤) 8,000 - - - - - - 2.75 137.8 - - 5.50 194.9
Vectran (1.41g/㎤) 38,620 0.42 55.3 0.65 70.7 1.31 97.6 2.57 136.9 - - 5.14 198.3



200D 500D High Tenacity Zxion Yarn For Optical Fiber Cable Filler 0200D 500D High Tenacity Zxion Yarn For Optical Fiber Cable Filler 1



How To order :

1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment





Shipping instructions :



We will ensure that the goods are not damaged during delivery. Before shipment, we will arrange for the customer to conduct a video inspection to ensure that there is no problem and the goods will leave to ensure that everything is safe during transportation. We will also track the process in real time.





After Service:



1. Best quality and best service for any order. No problem big or small order

2. One year warranty.

3. Please contact after our Service Department, inform us what problem you encounter.

4. We provide solving methods for you.
