Glass Yarn / E-glass Fiberglass Roving For Pultrusion Profile Optical Cable Reinforced Core

Minimum Order Quantity : 1000 KGS Price : 0.5-1/kg
Delivery Time : 2-3 weeks Payment Terms : L/C, T/T
Supply Ability : 3000 MT/Month
Place of Origin: China Brand Name: Longtai
Certification: Reach,Rohs Model Number: Glass Yarn

Detail Information

Application: Cable Filler Color: White
Packing: 2.5---40KG/roll Feature: Glass Yarn Armoured Fiber Yarn
High Light:

Pultrusion Profile Fiberglass Roving

,

E-glass Fiberglass Roving

,

Optical Cable Fiberglass Roving

Product Description



Glass Yarn/E-glass Fiberglass Roving For Pultrusion Profile Optical Cable Reinforced Core



Glass yarn (Glass yarn with Water Blocking effect) are primarily used as peripheral strength elements in fibre optic cables. This flexible and flat glass yarn is composed from premium quality glass filaments and PU-polymeric resins to enhance the properties and increase its abrasion resistance to heavy duty processes.



Glass Yarn is one of the very super fine yarn for fiberglass cable filler, textiles fabric, tape for electric, insulation, coating purpose. The glass fiber yarn is formed low fuzz, uniform fiber diameter, stable strength and minimize the weave problem. This yarn is good material used for cables filler for ratproof.

Features
Uniform linear density and low fuzz
High strength
Good electric insulation
High temperature resistance

Application
Fiberglass textiles



Main technical data:



Type 300 to 4800 tex (depending on the order)
E-Modulus Greater than 65,000 (MPa)
Weight Varying depending on the tex
Color Yellow (or) White
Max. weight 10 to 20 kg
Note Packing data can be according to customer requirements.





Specification



1. Direct Yarn



Linear Density
(tex)
Length Per Kilogram
(m/kg)
Breaking Strength
(N)
Nominal Diameter
(μm)
Combustible Content
(%)
Water Content
(%)
300±5% 3333 ≥0.30 14 0.55±0.15 ≤0.10
600±5% 1667 16
1200±5% 833 16
2400±5% 416 24
4800±5% 208 24
8800±5% 113 27
9600±5% 104 28



2. PU Impregnate Yarn



Specification Unit Standard Type Water Blocking Type
Linear Density Tex 600 785 1200 2400 600 785 1200 2400
Linear Density Tolerance % ±10
Density g/cm³ 2.55±0.55
Tensile Strength - Break N ≥300 ≥330 ≥600 ≥850 ≥300 ≥330 ≥600 ≥850
Tensile Strength – LASE0.5% ≥65 ≥90 ≥140 ≥260 ≥65 ≥90 ≥140 ≥260
Tensile Strength – LASE1.0% ≥130 ≥180 ≥300 ≥550 ≥130 ≥180 ≥300 ≥550
Tensile Strength – LASE1.5% ≥210 ≥270 ≥400 ≥780 ≥210 ≥270 ≥400 ≥780
Elongation at break % ≥2.0
Tensile Modulus
(Young Modulus)
Gpa ≥75
Water Swellable Rate % N/A ≥300
Yarn Width mm 2.2 2.8 3.8 4.3 2.2 2.8 3.8 4.3
Yarn Thickness mm 0.16 0.2 0.25 0.3 0.18 0.25 0.26 0.32

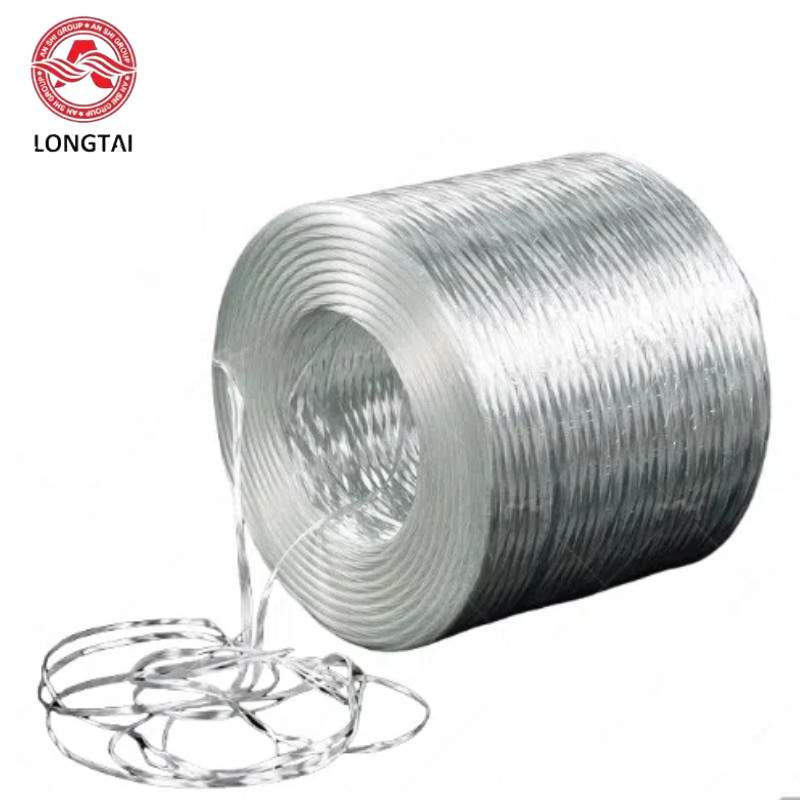

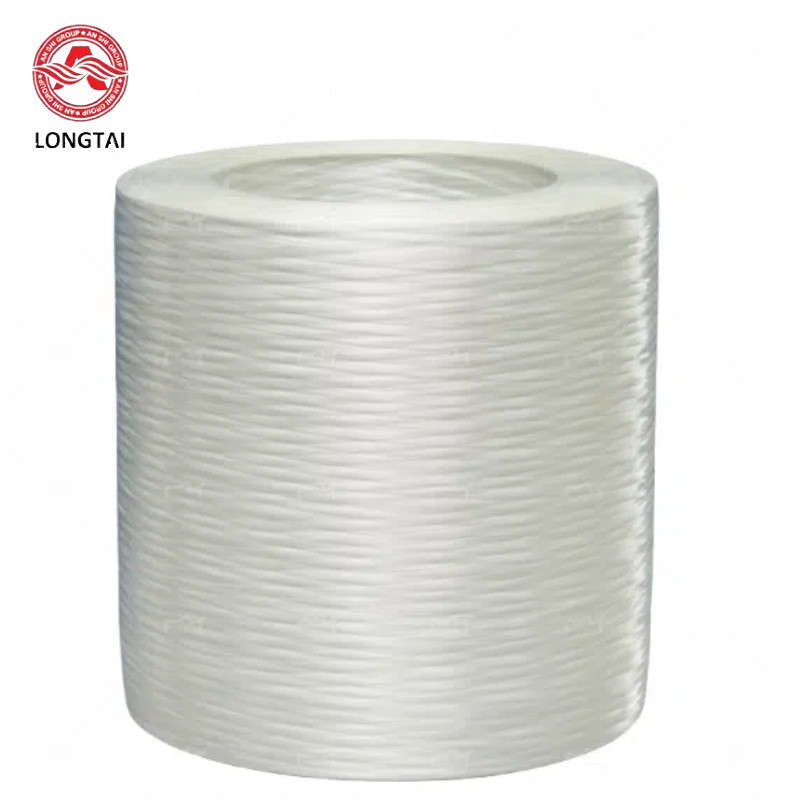

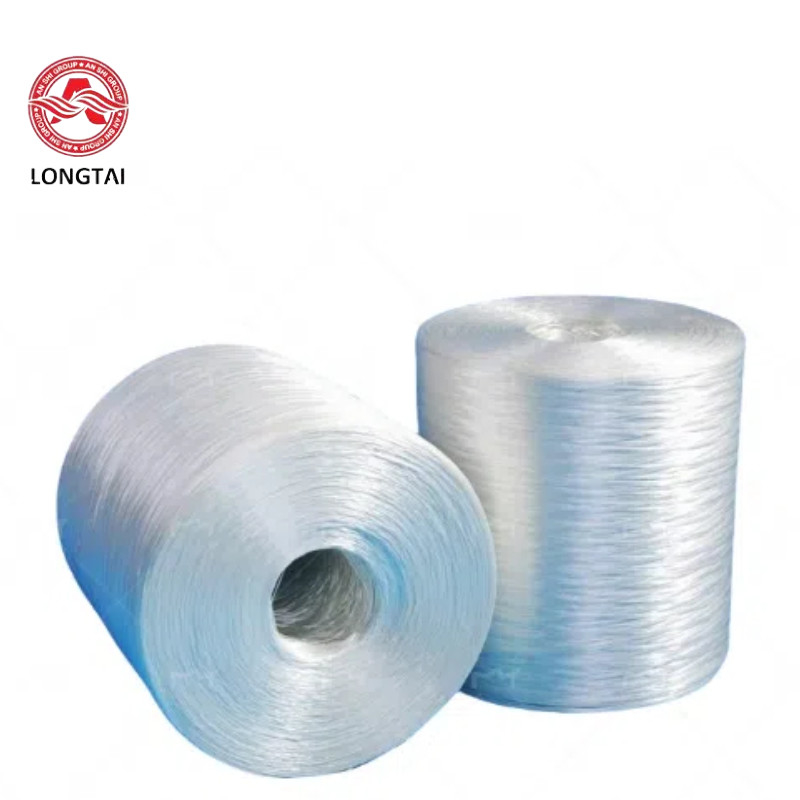

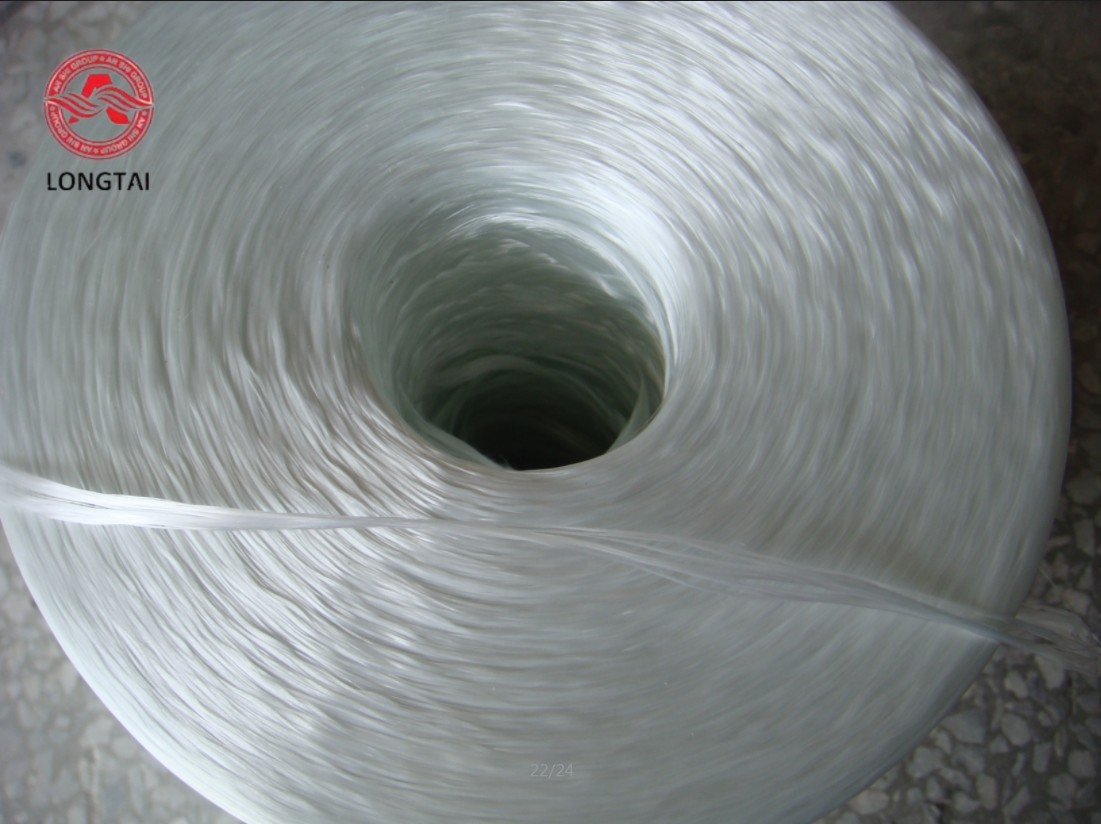

Glass Yarn / E-glass Fiberglass Roving For Pultrusion Profile Optical Cable Reinforced Core 0Glass Yarn / E-glass Fiberglass Roving For Pultrusion Profile Optical Cable Reinforced Core 1



Packaging & Shipping



1, Direct Yarn



Yarn ID
(mm)
Yarn Height
(mm)
Yarn OD
(mm)
Yarn Weight
(kg)
Core
160 260, 265 270-275 17 Empty, without bobbin



2. PU Impregnate Yarn



Yarn ID
(mm)
Yarn Height
(mm)
Yarn OD
(mm)
Yarn Weight
(kg)
Core
94 220, 275 200-240 8-16 Paper





Application :



Glass Yarn Armoured Fiber Optic Cable Series are meant for duct applications. Dielectric strength member – Glass Yarn, gives protection to the cable against rodent attacks. Because of their dielectric nature cables can be laid along with high voltage lines inside ducts.
