Flame Retardant Fiberglass Tape Wrapping Tape For XLPE Cable Marine Cable Mine Flame-retardant Cable

Minimum Order Quantity : 1000 KGS Price : Negociated
Packaging Details : be packed in paper carton with PE film bag inside Delivery Time : 2-3 weeks
Payment Terms : L/C, T/T Supply Ability : 800 MT/Month
Place of Origin: China Brand Name: Longtai
Certification: Reach,Rohs Model Number: Flame Retardant Tape

Detail Information

Material: Glass Fiber Thickness: 0.15-0.2mm
HS Code: 7019510090 Port Of Loading: Shenzhen, China
Container Loading: 14t / 20GP, 23t / 40GP Shipping: By Sea
High Light:

XLPE cable Fiberglass Tape

,

Marine cable Fiberglass Tape

,

Mine flame-retardant cable Fiberglass Tape

Product Description



Cable Flame Retardant Fiberglass Tape Wrapping tape



Product Description



Longtai Flame Retardant Fiberglass Woven Tape uses pure E-Glass material, which can resist flame, is environmentally friendly and free from asbestos. It is mainly applied to XLPE, PVC, marine cable and mine flame-retardant cable and can resist temperatures at around 400-500 °C.



Cable fiberglass tape can take 900 degree temperature. best choise for heat resistance and environment-friendly cable wrapping material

Electrical characteristics: Nature soft, good flatness, good tensile strength, seam is not easy to break, easy cable wrapping, doesn’t burn at about 900°C, and prevented flames through the air, protect the cable insulation from burning, the fog volume is few when burned.



The color of fiberglass cable tape is white



Spool package, the fire retardant glass fiber tape width can be custom made.


Common width is 15mm , the maximum outer diameter can be 800mm



Application



Cable fiberglass tape mainly used XLPE cable, marine and mining cable, optical cables, telecommunication cables, power cables.





Technical Parameters



Item Technical Parameters
Nominal Thickness (mm) 0.15 0.17 0.18 0.2
Unit weight in grams (g/m2) 180±20 200±20 215±20 220±20
Tensile strength (longitudinal) (N/25mm) ≥300
Oxygen Index (%) ≥55
Smoke Density (Dm) ≤100
Corrosive gases released by combustion
pH of aqueous solution
Conductivity of aqueous solution (μS/mm)
≥4.3
≤4.0

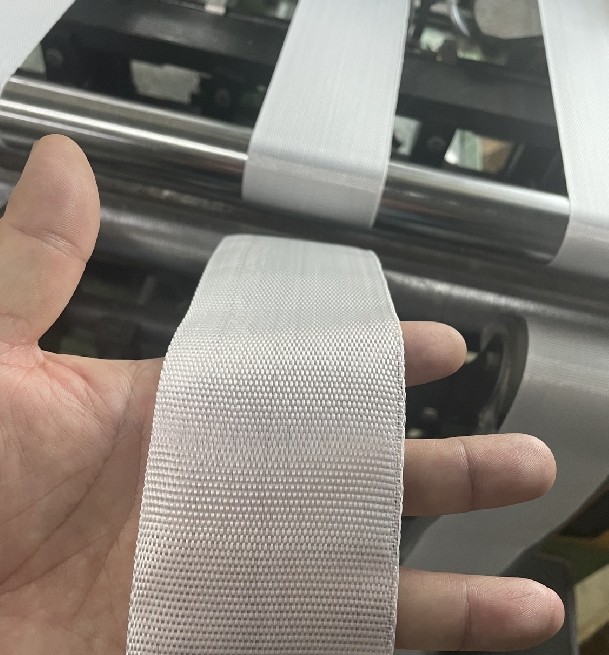

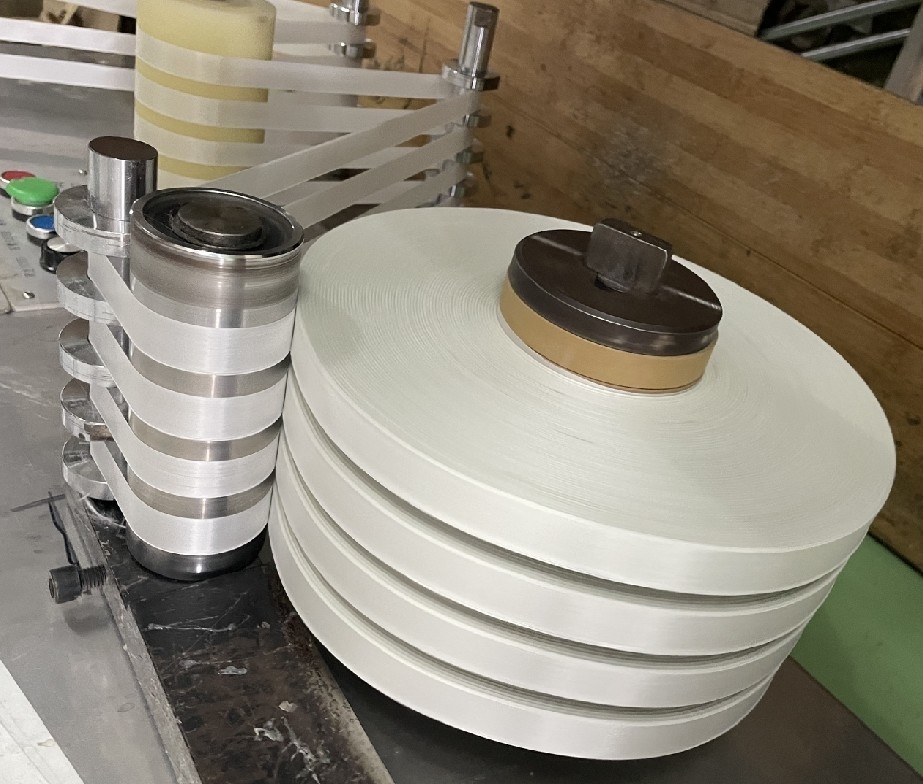

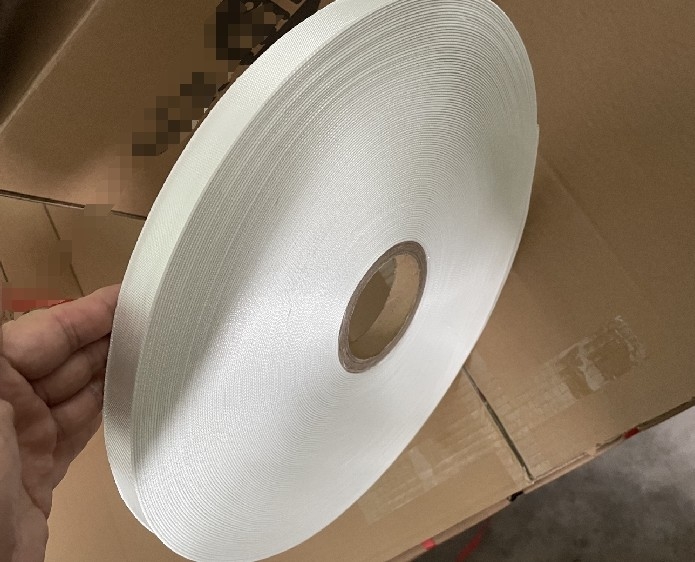

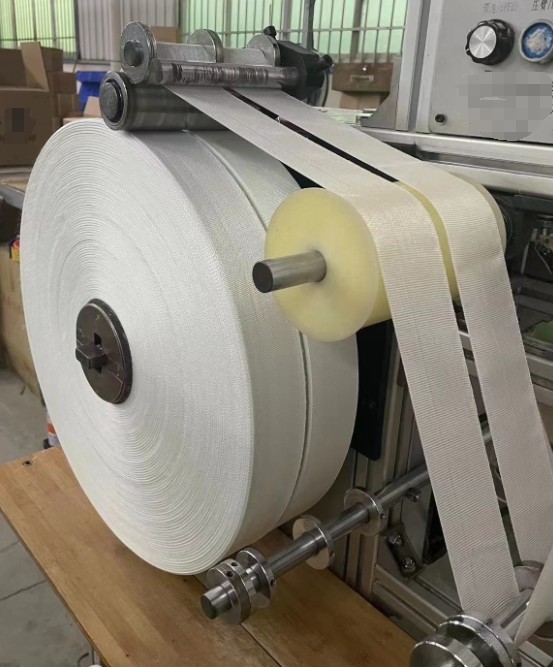

Product Show



Flame Retardant Fiberglass Tape Wrapping Tape For XLPE Cable Marine Cable Mine Flame-retardant Cable 0Flame Retardant Fiberglass Tape Wrapping Tape For XLPE Cable Marine Cable Mine Flame-retardant Cable 1Flame Retardant Fiberglass Tape Wrapping Tape For XLPE Cable Marine Cable Mine Flame-retardant Cable 2Flame Retardant Fiberglass Tape Wrapping Tape For XLPE Cable Marine Cable Mine Flame-retardant Cable 3



Flame Retardant Fiberglass Tape Wrapping Tape For XLPE Cable Marine Cable Mine Flame-retardant Cable 4



Packaging



The product will be packed in paper carton with PE film bag and bubble paper inside. It is then sealed and inserted in a wooden case or packed on a wooden pallet. After it is fixed, an external plastic coversheet is wrapped around it to avoid water penetration.



Storage Information


The product has a shelf life of 12 months from production date if stored in unopened original packages, under dry and clean conditions at temperatures between 10-30°C. The product will be damaged if it is stored in a moist area or if it gets in contact with water.



1) The product shall be kept in a clean, dry and ventilated warehouse.
2) The product should not be stacked together with flammable products and should not be close to fire sources.
3) The product should avoid direct sunlight and rain.
4) The product should be packed completely to avoid moisture and pollution.
5) The product shall be protected from heavy pressure and other mechanical damage during storage.
6) The storage period of the product at ordinary temperature is 6 months from the date of production. More than 6 months storage period, the product should be re-examined and only used after passing the inspection.
