RoHS And REACH Compliant Cable Shielding Protecting PP Foamed Binding Tape 0.08mm
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kg | Price : | Negociated |
|---|---|---|---|
| Packaging Details : | Be packed in paper carton with PE film bag inside | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, D/P, T/T, D/A | Supply Ability : | 800 tons per month |
| Place of Origin: | CHINA | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | ISO 9001, REACH, ROHS | Model Number: | PP Foam Tape |
|
Detail Information |
|||
| Material: | Foamed Polypropylene | Type: | Binding Film |
|---|---|---|---|
| Application: | Used During Laying-up Of Cables For Binding/holding Of The Cores | Color: | White |
| Port: | Shenzhen | Packing: | Be Packed In Paper Carton With PE Film Bag Inside |
| Size: | 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm | Sample: | Available |
| High Light: | MDO PP Foam Tape,0.16mm PP Foam Tape,Foamed Polypropylene Insulation Tape |
||
Product Description
Product Description:
PP foam tape is mainly made of polypropylene. It Process with physical and mechanical foaming. Foamed PP Tape (PROFOM) is a flexible single layer Foamed and Mono-Axially Oriented (MDO) Polypropylene film which have been structured by various thicknesses.
Longtai offers high tenacity with uniform closed cell foam structure. Monoaxial orientation with gas foamed prevent possible tearing in the traverse direction and provide high tensile strength to best working conditions.
Foamed Polypropylene Tape usually using for power and communication cable applications as a binding film.
Also Known As
Foam Polypropylene, PP Tape, Strip.
Application:
Apply to wrapping and filling with communication cable and shielding layer, waterproof layer of composite cable with multiple structures.
Main specification:
| Specification | Unit | LT-10 | LT-12 | LT-15 | LT-18 | LT-20 |
| Thickness | mm | 0.10±0.015 | 0.12±0.02 | 0.15±0.02 | 0.18±0.02 | 0.20±0.02 |
| Mass per unit weight | g/m² | 50±8 | 60±10 | 75±10 | 90±10 | 100±10 |
| Tensile Strength | Mpa | ≥80 | ≥80 | ≥70 | ≥60 | ≥60 |
| Elongation at break | % | ≥10 | ||||
| Melting Point | °C | 225 | ||||
| Heat Shrinkage (100°C,10min) | % | ≤6 | ||||
Winding Solution:
| Type | ID | OD | Standard Width | Core |
| (mm) | (mm) | (mm) | ||
| Pad | 52(2“), 76(3“), | Up to 600 | ≥5 | Plastic, Paper |

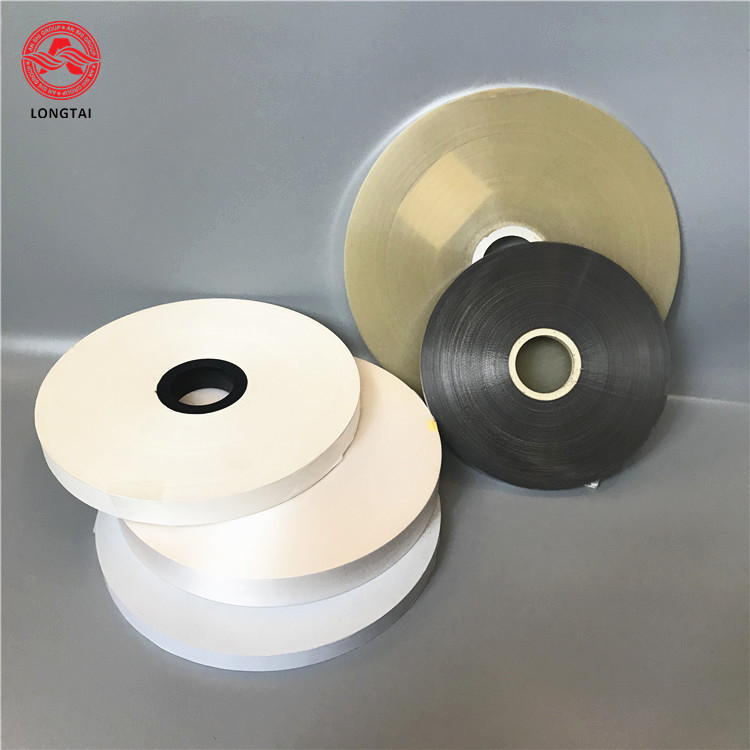

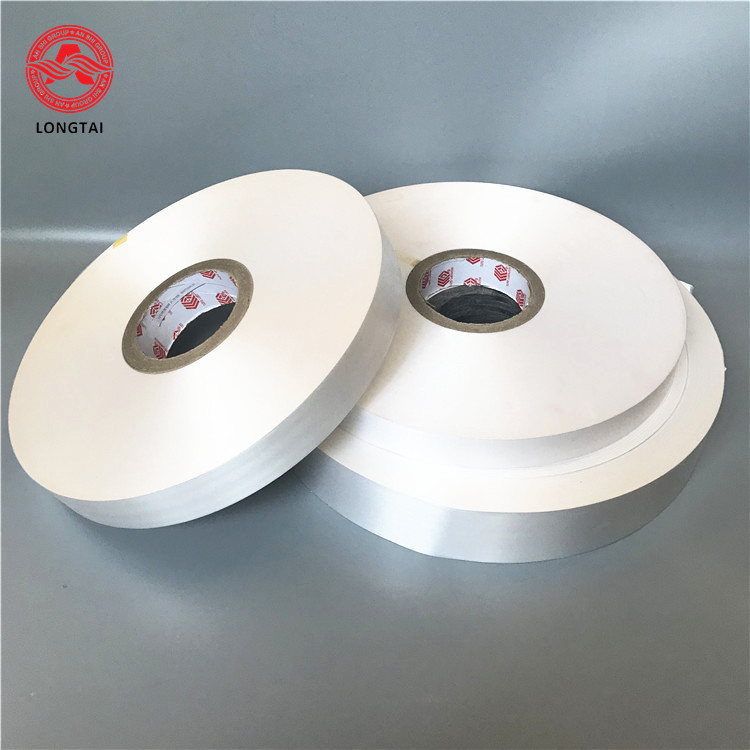

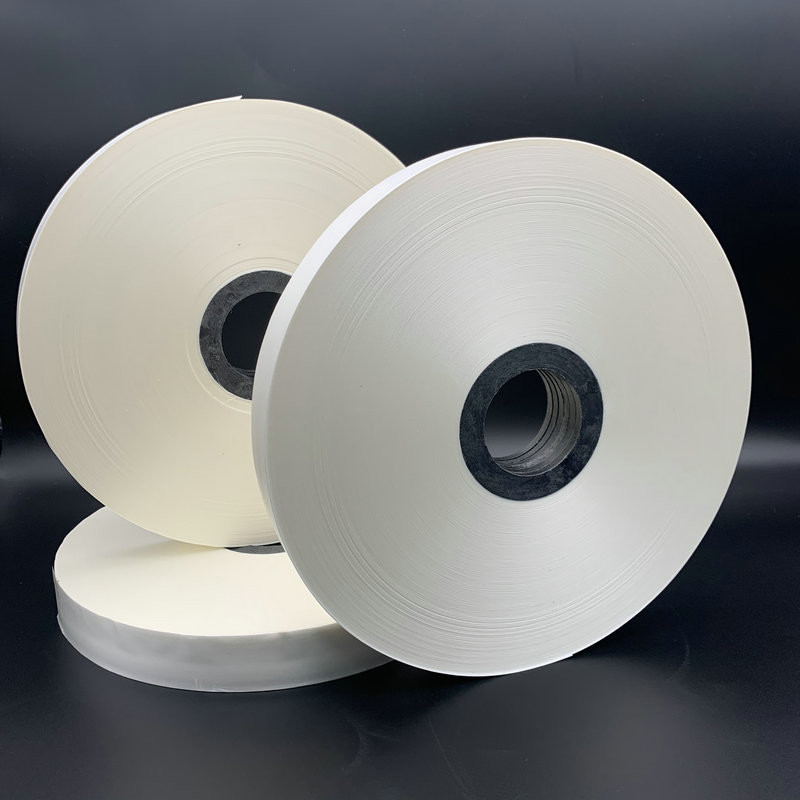

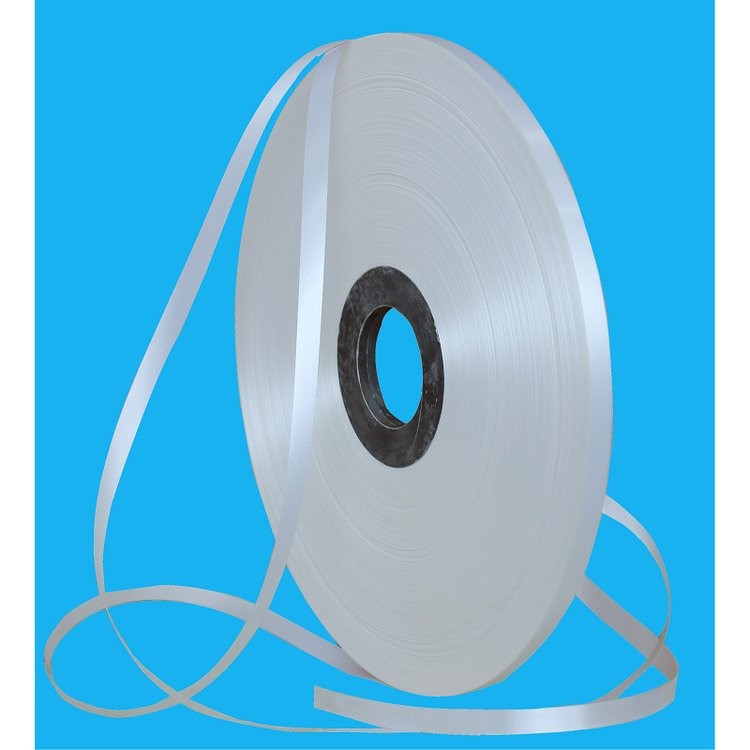

Product Show:
Electrical characteristics:
The main character of PP foam tape is light weight, good longitudinal tensile, environmentally friendly. Has good heat resistance and can be used for more than 120℃.
Slitting and packaging:
Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging
Packaging and Marking:
Polypropylene PP Foam Tape will be packed in paper carton with PE film bag inside. It is then sealed and inserted in a wooden pallet. After it is fixed, an external plastic coversheet is wrapped around it to avoid water penetration.
Storage:
Polypropylene PP Foam Tape has a shelf life of 12 months from production date if stored in unopened original packages, under dry and clean conditions at temperatures between 10-30°C. The product will be damaged if it is stored in a moist area or if it gets in contact with water.
